Using AX Manager

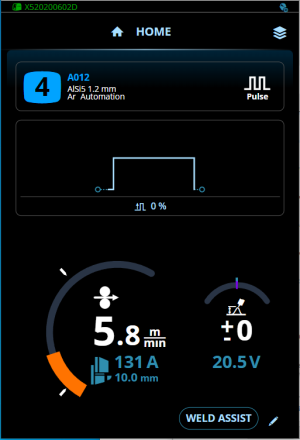

AX Manager is the user interface for controlling AX MIG Welder. AX Manager can be used with a PC, tablet and mobile device. The parameters, functions and symbols are shortcuts to the corresponding views.

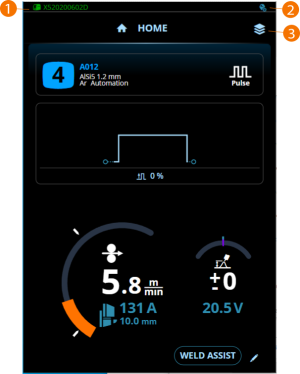

1.

Device serial number

2.

User

>>  Shortcut to the Users view

3.

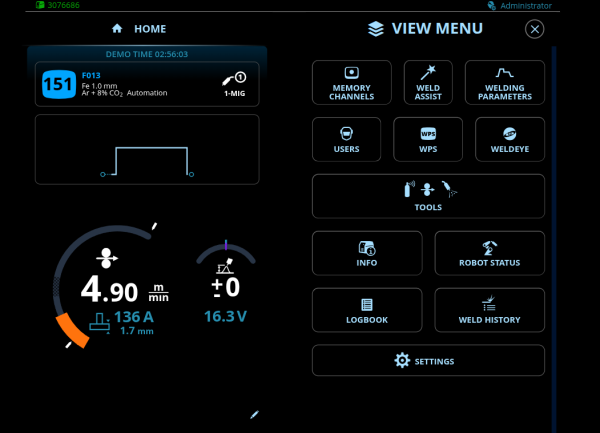

View menu

>>  Enter view selection.

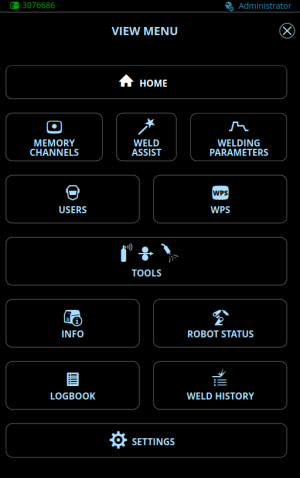

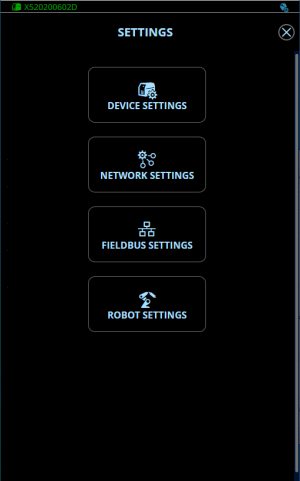

View menu	Settings view menu

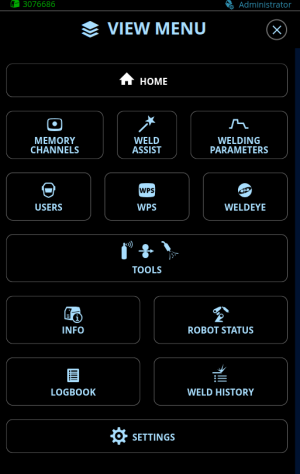

Views:

Home

Memory channels

Welding parameters

Weld Assist

Users

WPS

Tools

Info

Robot status

Logbook

Weld history

Device settings

Network settings

Fieldbus settings

Robot settings

Adjustment views

In adjustment views you can adjust parameter values with a number pad or a slider.

1.

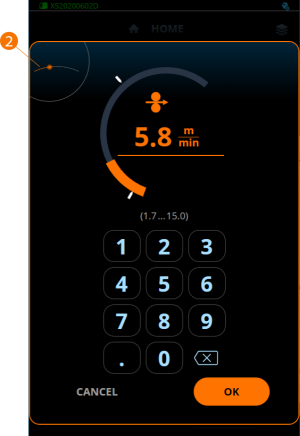

Select to change to a number pad.

2.

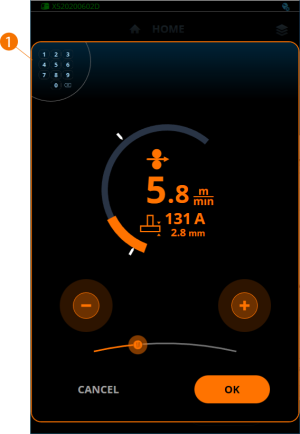

Select to change to a slider.

Scaling

The views scale differently depending on the device used.

Scaling in mobile device

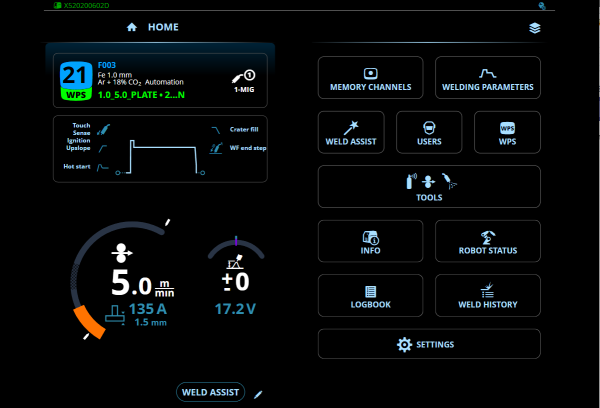

Scaling in tablet and PC
