Fieldbus settings

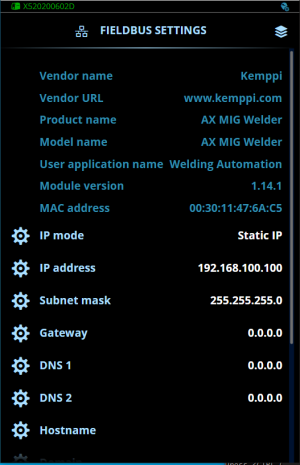

Fieldbus settings can be accessed via the Settings view menu in AX Manager. The tables below list the setting parameters for each supported fieldbus. The fieldbus settings view varies according to the fieldbus module used.

Changing fieldbus settings

1. Select the settings parameter for adjustment.
2. Select the settings value.

>>  Depending on the settings parameter to be adjusted, refer also to the Fieldbus settings tables below for more details.

3. Confirm the new value / selection and close the adjustment view by selecting 'Save'.

Fieldbus settings

ClosedModbus TCP

This table lists the Modbus TCP fieldbus settings.

Parameter Value Description
Identification information
Vendor name Kemppi Vendor identifier assigned to Kemppi.
Product code   Ordering code of the fieldbus module.
Vendor URL www.kemppi.com Vendor's URL address.
Product name AX MIG Welder Name of the welding system.
Model name AX MIG Welder Name of the welding system.
User application name Welding automation Application description.
Module version Example: 1.23.4 Software version of the fieldbus module.
MAC address Example: AA:BB:CC:DD:EE:FF The unique address identifier of the fieldbus module's Ethernet port.
Configuration parameters
IP mode Static IP
Client		 Static IP: The IP address parameter values must be entered manually.
Client: The IP address parameter values come from the DHCP server.
IP address   Customer-specific IPv4 address for the fieldbus module.
Subnet mask   Subnet mask for the fieldbus module.
Gateway   IPv4 address of the gateway (if used). This field can be empty.
DNS 1   IPv4 address of the primary DNS server. This field can be empty.
DNS 2   IPv4 address of the secondary DNS server. This field can be empty.
Hostname   Host name limited to 64 characters. This field can be empty.
Domain   Domain name limited to 48 characters. This field can be empty.
Comm 1 mode Automatic
10 MBit Half Duplex
10 MBit Full Duplex
100 MBit Half Duplex
100 MBit Full Duplex		 Ethernet speed / duplex for port 1.
In the Automatic mode, the fieldbus module chooses the correct mode automatically.
Comm 2 mode Automatic
10 MBit Half Duplex
10 MBit Full Duplex
100 MBit Half Duplex
100 MBit Full Duplex		 Ethernet speed / duplex for port 2.
In the Automatic mode, the fieldbus module chooses the correct mode automatically.
Connection timeout 1 ... 65535 s
0 = Disabled		 Time in seconds that a Modbus connection can be open without a function (read or write) before the module closes the connection.
Process active timeout 1 ... 65535 ms
0 = Disabled		 Time in milliseconds that the fieldbus module remains in active state after the last Modbus message was received. If the Modbus connection is lost during welding, the equipment stops welding when the module's state changes from active to inactive.

ClosedEtherNet/IP

This table lists the Ethernet/IP fieldbus settings.

Parameter Value Description
Identification information
ODVA Vendor ID 0x057B Vendor identifier assigned to Kemppi by ODVA.
ODVA Device type 0x0064 Indication of the general type of the welding system.
Product code 3 Code from which the robot identifies the welding system.
Serial number Example: 750012345 Serial number of the welding power source.
Product name AX MIG Welder Name of the welding system.
Module version Example: 1.23.4 Software version of the fieldbus module.
MAC address Example: AA:BB:CC:DD:EE:FF Unique address identifier of the fieldbus module's Ethernet port.
Configuration parameters
IP address configuration Client / Static IP Client: The IP address parameter values come from the DHCP server.
Static IP: The IP address parameter values must be entered manually.
IP address   Customer-specific IPv4 address for the fieldbus module.
Subnet mask   Subnet mask for the fieldbus module.
Gateway   IPv4 address of the gateway (if used). This field can be empty.
DNS 1   IPv4 address of the primary DNS server. This field can be empty.
DNS 2   IPv4 address of the secondary DNS server. This field can be empty.
Hostname   Host name limited to 64 characters. This field can be empty.
Domain   Domain name limited to 48 characters. This field can be empty.
Comm 1 mode Automatic
10 MBit Half Duplex
10 MBit Full Duplex
100 MBit Half Duplex
100 MBit Full Duplex		 Ethernet speed / duplex for port 1.
In the Automatic mode, the fieldbus module chooses the correct mode automatically.
Comm 2 mode Automatic
10 MBit Half Duplex
10 MBit Full Duplex
100 MBit Half Duplex
100 MBit Full Duplex		 Ethernet speed / duplex for port 2.
In the Automatic mode the fieldbus module chooses the correct mode automatically.

ClosedProfibus

This table lists the Profibus fieldbus settings.

Parameter Value Description
Identification information
Manufacturer 0x0368 Vendor identifier assigned to Kemppi by PNO (PROFIBUS Nutzerorganisation).
PNO Ident number 0x11BF Manufacturer-specific identification number.
Order ID   Fieldbus module ordering code.
Serial number Example: PSNK0012345 Serial number of the welding power source.
Hardware version Example: 1 Hardware version of the fieldbus module.
Module version Example: 1.23.4 Software version of the fieldbus module.
Configuration parameters
Node address 0...125
126 = SSA mode		 The node address of the fieldbus module.
In the SSA mode the node address is defined automatically.

ClosedDeviceNet

This table lists the DeviceNet fieldbus settings.

Parameter Value Description
Identification information
ODVA Vendor ID 1403 Vendor identifier assigned to Kemppi by ODVA.
ODVA Device type 100 Identifier of the type of the welding system.
Product code 3 Code from which the robot identifies the welding system.
Serial number Example: 750012345 Serial number of the welding power source.
Module version Example: 1.23.4 Software version of the fieldbus module.
Product name AX MIG Welder Name of the welding system.
Configuration parameters
Node address 0...63 The node address of the fieldbus module.
Baud rate 125 kbps
250 kbps
500 kbps
Auto		 The rate at which information is transferred in a communication channel.

ClosedEtherCAT

This table lists the EtherCAT fieldbus settings.

Parameter Value Description
Identification information
ETG Vendor ID 0x00FE0001 Vendor identifier assigned to Kemppi by ETG (EtherCAT Technology Group).
Device type 0x00000000 Identifier of the type of the welding system.
Product code 0x000003<fieldbus interface mode in hexadecimal> Code from which the robot identifies the welding system.
For example, with fieldbus interface mode 20 the product code is 0x00000314.
Serial number Example: 750012345 Serial number of the welding power source.
Device name AX MIG Welder Name of the welding system.
Hardware version Example: 1 Hardware version of the welding system.
Module version Example: 1.23.4 Software version of the fieldbus module.
Configuration parameters
Device ID 1...65535 Node address of the fieldbus module.

ClosedProfinet

This table lists the Profinet fieldbus settings.

Parameter Value Description
Identification information
Device ID 0x0003 Code from which the robot identifies the welding system.
PNO Vendor ID 0x0368 Vendor identifier assigned for Kemppi.
Station type AX MIG Welder Name of the welding system.
Order ID   Fieldbus module ordering code.
Serial number Example: PSNK0012345 Serial number of the welding power source.
Hardware version Example: 1 Hardware version of the welding system.
Module version Example: 1.23.4 Software version of the fieldbus module.
Port 1 / Port 2 MAC address Example: AA:BB:CC:DD:EE:FF The unique address identifier of the fieldbus module's Ethernet ports 1 and 2.
