Device settings

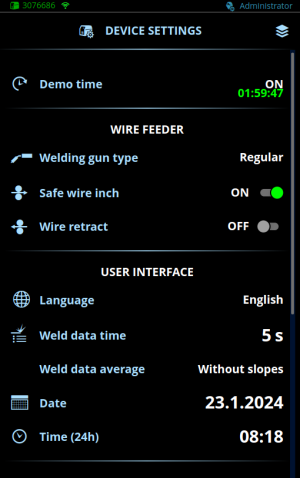

Device settings can be accessed via the Settings view menu in AX Manager.
Changing settings
| 1. | Select the settings parameter for adjustment. |
| 2. | Select the settings value. |
>> Depending on the settings parameter to be adjusted, refer also to the Device settings table below for more details.
| 3. | Confirm the new value / selection and close the adjustment view by selecting OK. |
Device settings
| Parameter | Parameter value | Description |
|---|---|---|
| Demo time | ON/OFF | The demo time feature allows you to try out optional welding features and functions without a license for a limited time. The total available demo time is 3 hours. The demo time passes only when welding using a welding feature you don't have a license for. For more information, refer to Demo time. |
| Wire feeder | ||
| Welding gun type | Regular / Binzel ROBO WH-PP Default = Regular |
Gun type selection. A push-pull gun can be used with R500 Wire Feeder EUR+ only. |
| Safe wire inch | OFF/ON Default = ON |
When ON, and the arc doesn't ignite, the filler wire is fed 5 cm. When OFF, 5 m of filler wire is fed. |
| Wire retract | OFF/AUTO Default = OFF |
This is an automatic wire retract feature. Once the arc is extinguished, the wire is retracted for additional safety. The user can change the wire retract delay and length settings. |
| - Retract delay | 2...10 s, step 1
Default = 5 s |
|
| - Retract length | 1...10 cm, step 1
Default = 2 cm |
|
| User interface | ||
| Language | Available languages | |
| Weld data time | 1 ... 30 s 0 = OFF Default = 5 s |
This defines if and how long the weld data summary is shown after each weld. |
| Weld data average | Without slopes / Entire weld Default = Without slopes |
This feature allows the user to change how the weld data averages are calculated: with or without the slope phases in the beginning and in the end of the weld. This setting affects the calculation of the averages for the following: welding voltage (terminal and arc voltage), welding current, welding power and wire feed speed. |
| Date | Current date | Note: The date and time settings are not affected by the NTP (Network Time Protocol). The user must set the correct date and time. |
| Time | Current time | |
| System settings | ||
| Water cooling | OFF/AUTO/ON
Default = AUTO |
When ON is selected, the coolant is circulated continuously, and when Auto is selected, the coolant is circulated only during welding. |
| Cable calibration | Start/Cancel | The date and time and the calibration information of the previous calibration is also shown. Refer to Calibrating welding cable for cable calibration. |
| Device data | ||
| Backup | (Selection) | This allows the settings to be saved on a connected USB memory stick or the user's device (PC, tablet). |
| Restore | (Selection) | This allows the settings to be restored from a connected USB memory stick or the user's device (PC, tablet). |
| Factory reset | Start/Cancel | Performs a full reset to factory settings. Note: The factory reset may take up to 15 minutes to complete. A progress indicator shows the progress of the procedure. When the factory reset is complete, RCM will reboot automatically, after which it will continue normal operation. |
