Using X5 AP/APC control panel

X5 AP/APC control panel (X5 FP 300 AP/APC) is included in:

• X5 Wire Feeder 300 AP/APC
• X5 Wire Feeder HD200 AP/APC
• X5 Wire Feeder HD300 AP/APC.

The X5 AP/APC wire feeder and control panel include advanced features and functions for MIG welding with the option to use the X5 FastMig also for TIG (DC) and MMA welding and gouging.

The automatic 1-MIG process is available along with the Kemppi welding programs as well as Wise and MAX features and processes (optional). For more information, refer to How to get welding programs.

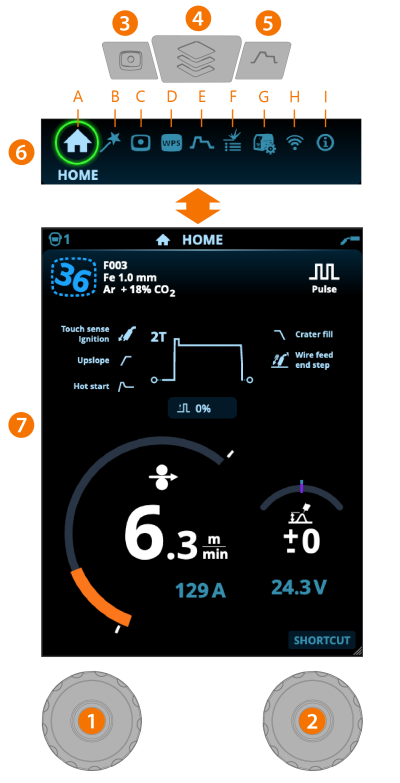

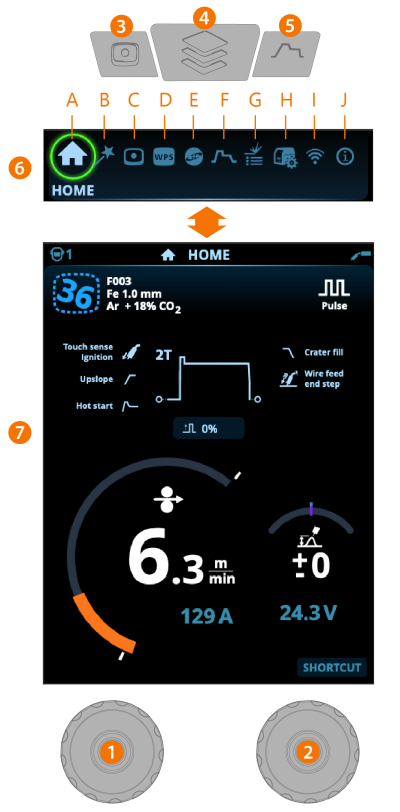

X5 AP/APC control panel

General

1. Left control knob

>>  Adjustment and selection

2. Right control knob

>>  Adjustment and selection

3. Memory channels button

>>  Shortcut to the memory channel selection

>>  Changed welding parameters can be quickly saved onto the active memory channel by keeping the Memory channels button pressed for approx. 2 seconds. This works in any view.

4. View menu button

>>  Enter view selection

>>  Long press of the button returns to Home view, or if already in Home view, to the last used view.

5. Welding parameters button

>>  Shortcut to the welding parameters view

6. View selection

>>  Change view by turning the control knob (2)

>>  Confirm view change by pressing the control knob (2).

Safety lock: By long-pressing the control knobs 1 and 2 simultaneously, the device can be locked for safety. This prevents welding and operating the device by accident without having to turn the equipment off. Unlock the device by pressing the control knobs 1 and 2 simultaneously for 2 seconds.

Views (7)

A. Home view
B. Weld Assist view
C. Memory channels view
D. WPS view (available with APC model)
E. WeldEye view (available with APC model)
F. Welding parameters view
G. Weld history view
H. System settings view
I. WLAN view (available with APC model)
J. Info view



After each weld, a weld summary (Weld data) is displayed briefly.
