X5 Wire Feeder HD200
This section describes the structure of the X5 Wire Feeder HD200 Manual, AP and APC.
|
Keep the wire feeder covers closed during welding to reduce the risk of injury or an electric shock. Keep the covers closed also at other times to keep the inside of the wire feeder clean. |
|

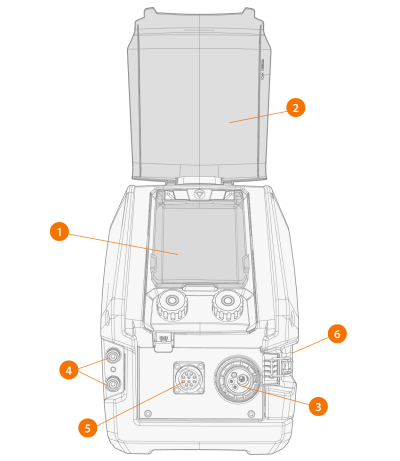

1.
|
Control panel (and control panel display cover *) |
>> For more information on the X5 Wire Feeder HD200 Manual control panel, refer to Control panel of X5 WF 300 Manual and HD200 Manual.
>> For more information on the X5 Wire Feeder HD200 AP/APC control panel, refer to AP/APC control panel.
|
3.
|
Euro connector for welding cable connection |
|
4.
|
Coolant inlet and outlet connectors (color-coded) |
|
5.
|
Control cable connector (10-pin) |
|
6.
|
Wire feed cabinet and cabinet door latch. |
* Display and control panel covers come as standard. Either can be removed according to your requirements.

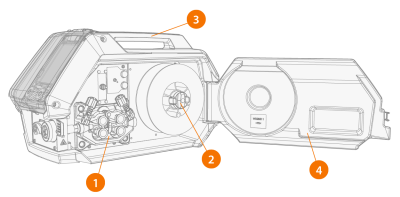

Wire feed cabinet
|
1.
|
Wire feed roll mechanism |
>> For more information on the wire spools, refer to Wire spool and hub (200).
|
4.
|
Wire feeder cabinet door |
|
5.
|

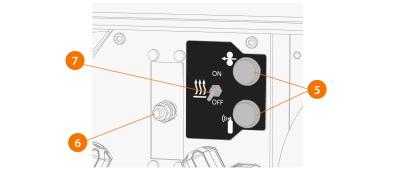

Wire inch and gas test buttons |
|
6.
|
Shielding gas flow regulator valve |
|
7.
|
Cabinet heater switch (cabinet heater is optional). |
|
A separate model version with a built-in rotameter for gas is also available. In that case, the gas flow regulator valve is replaced with the rotameter adjustment knob and scale. |

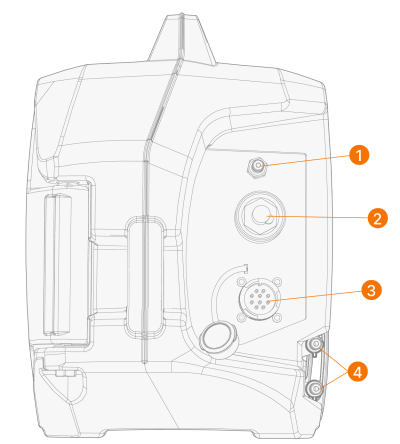

Interconnection cable connectors
|
1.
|
Shielding gas hose connector |
|
2.
|
Welding current cable connector (DIX) |
|
3.
|
Control cable connector |
|
4.
|

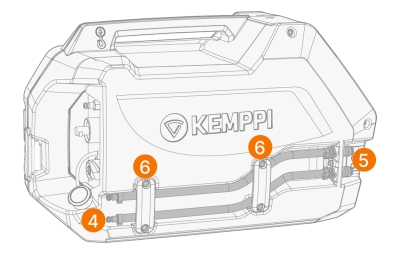

Coolant hose connectors * |
|
5.
|
Coolant inlet and outlet connector holder |
|
6.
|
Coolant hose duct brackets. |
* With the X3 HD200 wire feeder, the coolant hoses are connected to the continuation hoses that are guided to the front.
For installing and connecting the cables, refer to X5 interconnection cable and Installing cables (X5 WF HD200).
Wire feeder fixing accessories
X5 Wire Feeder HD200 can be equipped with wire feeder protection sliders for additional protection and installation options. When the protection sliders are used, X5 Wire Feeder HD200 can also be installed on top of the X5 power sources using the same optional fixing accessory sets than with the X5 Wire Feeder 300. With the protection sliders, connecting directly to the wire feeder cart and 2-wheel trolley is also possible.
