Manual control panel

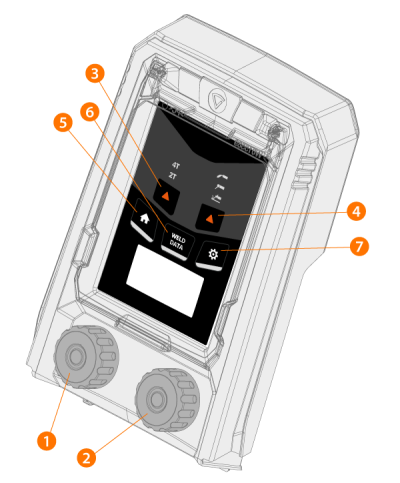

This section describes the controls and features of the X5 Wire Feeder 300 Manual control panel (X5 FP 300R).

1.

Left control knob

2.

Right control knob

3.

Trigger logic selection (2T/4T)

4.

Process selection (MIG/MMA/Gouging/TIG)

5.

Home button (default welding mode)

6.

Weld data button

7.

Settings button



For using the control panel, refer to Using X5 Manual control panel.
