Wire spool and hub (200)

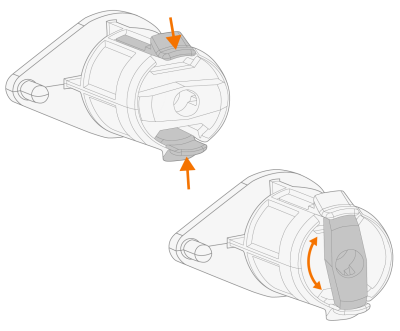

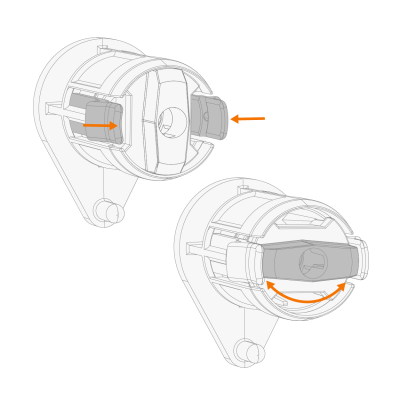

The wire spool can be released and removed by opening the lock and pushing the locking clips towards the center. The locking clips are locked by turning the lock knob between the locking levers:

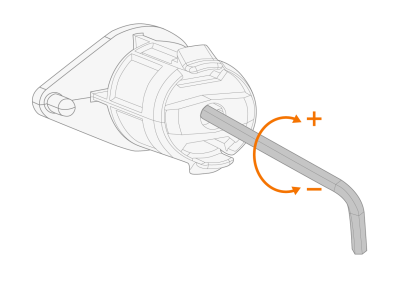

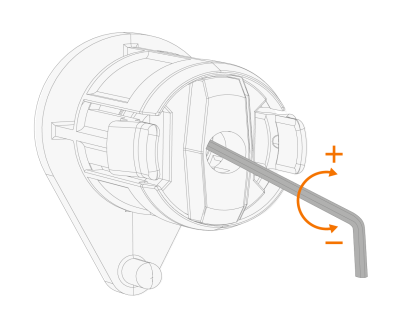

Spool brake adjustment:
