AP/APC control panel

This section describes the controls and features of the X5 Wire Feeder 300 AP/APC control panel (X5 FP 300AP/APC).

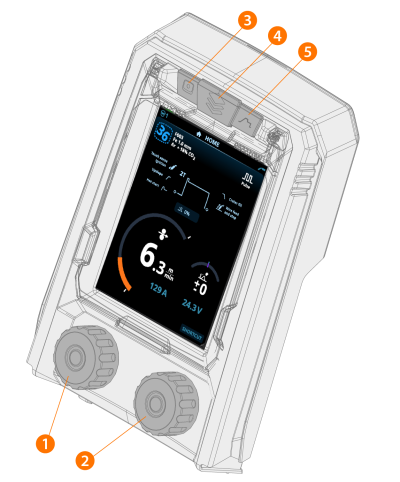

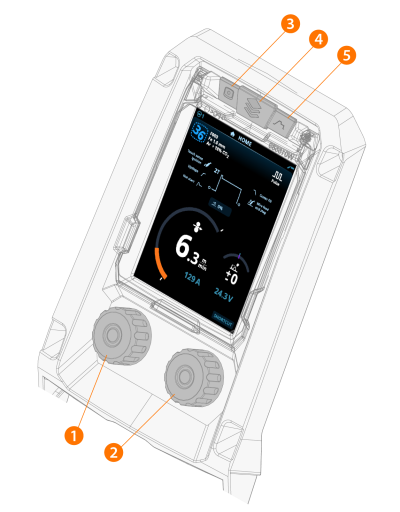

The AP/APC control panel of the X5 Wire Feeder 300 on the left and the AP/APC control panel of the X5 Wire Feeder HD300 on the right:

1.

Left control knob (with push button function)

2.

Right control knob (with push button function)

3.

Memory channel selection (shortcut button)

4.

View selection (shortcut button)

5.

Welding parameters view (shortcut button).



For using the control panel, refer to Using X5 AP/APC control panel.
