Installing equipment on X3T4 cart (optional)
X3T4 cart is an optional 4-wheel cart with gas bottle rack for X3 FastMig.
In addition to this instruction, refer also to the installation instructions delivered with the cart.
Tools needed:
|

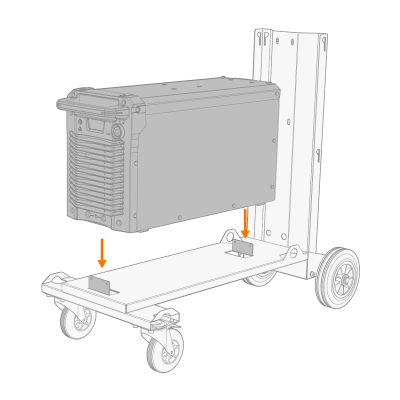

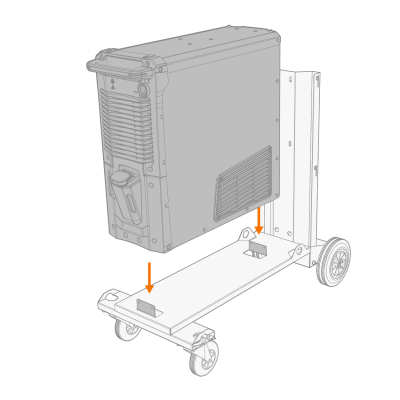

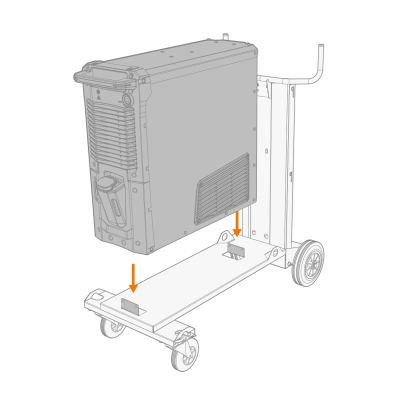

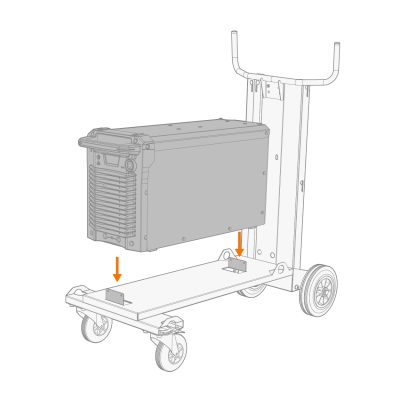

| 1. | Install the power source on the cart. |
| 2. | Secure the power source to the cart. |

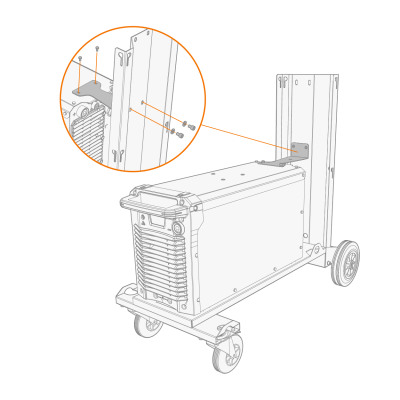

>> With the securing bracket delivered with the cart:
|

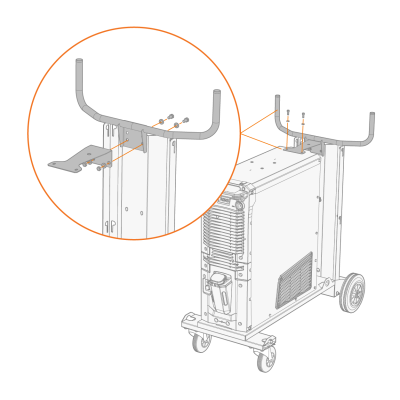

Note also the installation of the handle bar / cable holder together with the securing bracket when using a water-cooled power source: Installing cables (X3 WF HD300) or Installing cables (X3 WF HD200). |

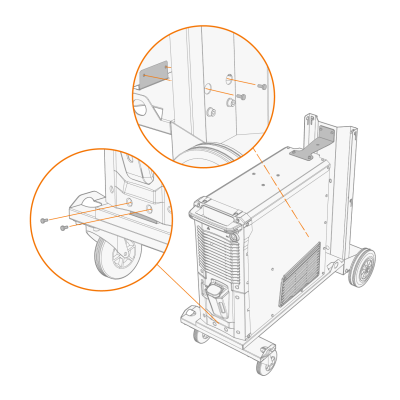

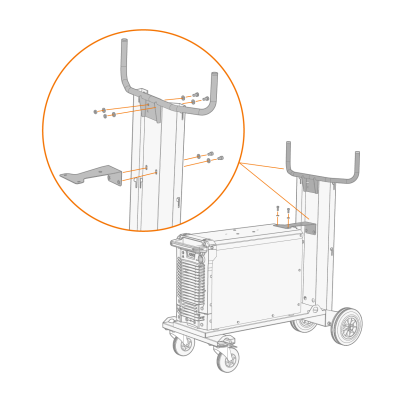

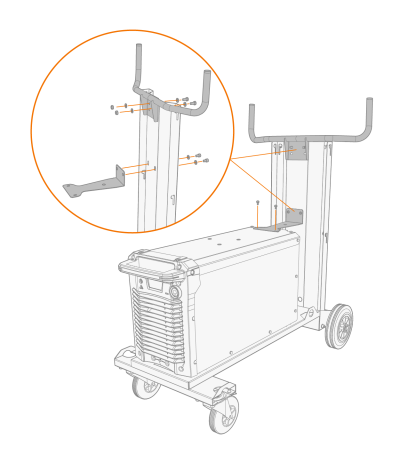

X3 power source, standard-height models:

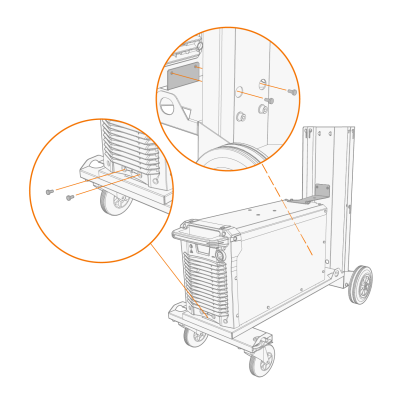

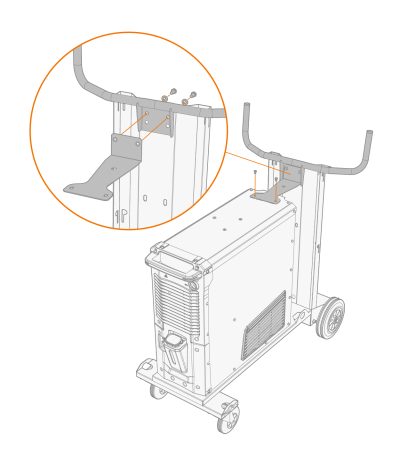

X3 power source, taller multi-voltage models:

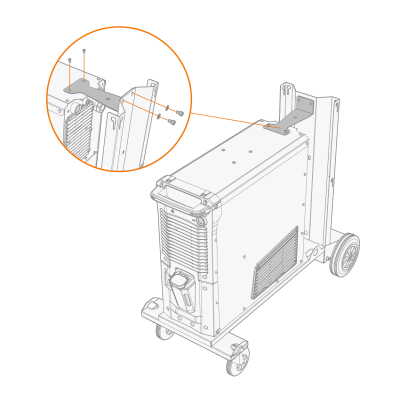

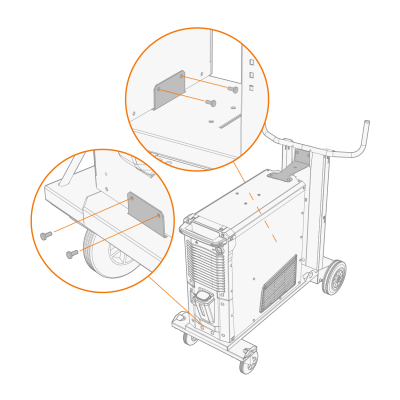

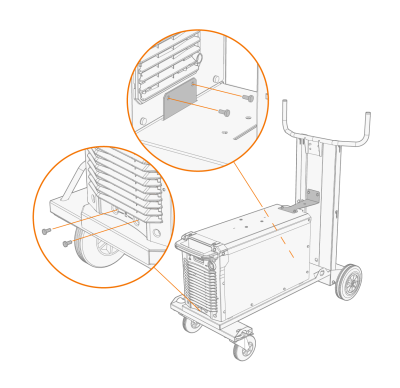

>> And with two screws in the front and two screws in the rear (use the screws delivered with the securing bracket):
|
|
The X3 HD200 wire feeder can be installed on top of the power source using the fixed wire feeder mounting plate and protection sliders. |
|
|
The X3 HD300 wire feeder can be installed on top of the power source using the round wire feeder mounting plate (allows turning). |
| 3. | Install the wire feeder mounting plate on the power source. |
>> X3 WF HD200: Refer to Installing wire feeder with fixed plate (X3 WF HD200) for more information.
>> X3 WF HD300: Refer to Installing wire feeder with mounting plate (X3 WF HD300) for more information.

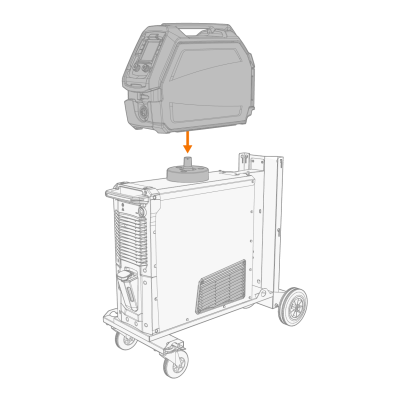

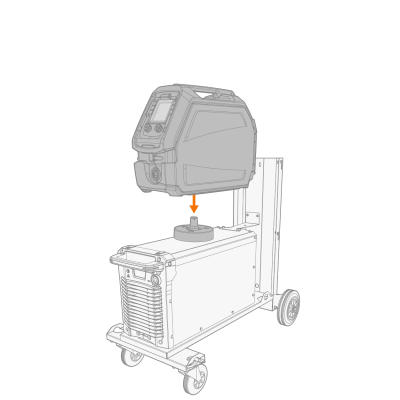

| 4. | Lift the wire feeder on top of the power source, on the mounting plate. |
>> X3 WF HD200: Refer to Installing wire feeder with fixed plate (X3 WF HD200) for more information.
>> X3 WF HD300: Refer to Installing wire feeder with mounting plate (X3 WF HD300) for more information.

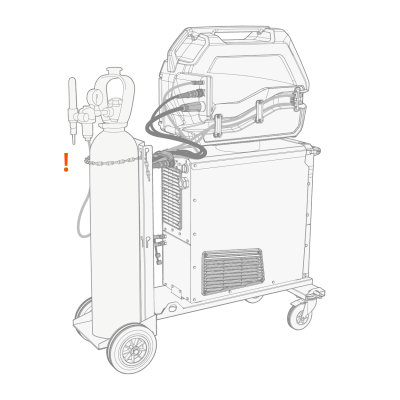

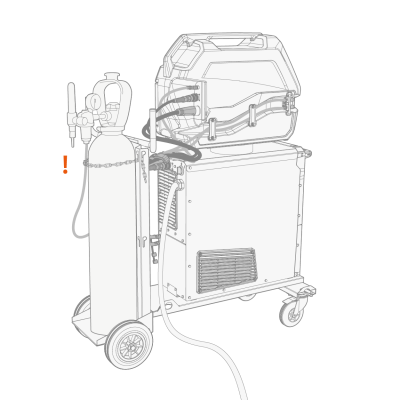

| 5. | Place the gas bottle on the rear rack and secure it with the chain delivered with the cart. |
For lifting the equipment, refer to Lifting equipment.
