Lifting equipment

If you need to lift X3 FastMig equipment, pay special attention to the safety measures. Also follow the local regulations. The X3 FastMig equipment can be lifted with a mechanical hoist as a whole only when the equipment is installed securely on the dedicated transport unit (X3T4 cart).

If a gas bottle is installed on cart, DO NOT attempt to lift the cart with the gas bottle in place.

DO NOT attempt to lift the full set of equipment with a hoist from the handle.

1.

Ensure that the welding equipment is properly secured to the cart.

>>  Refer to Installing wire feeder with mounting plate and Installing equipment on X3T4 cart (optional) for more information.

2.

Connect the 4-legged chain or straps from the hoist hook to the four lifting points on the cart on both sides of the welding equipment.

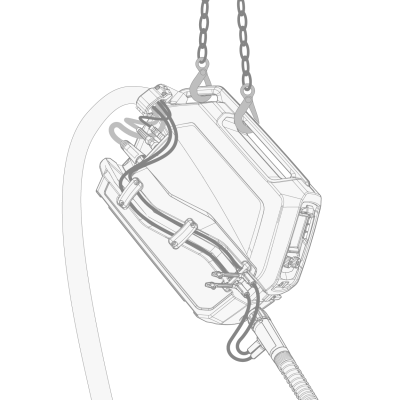

Suspending the wire feeder alone (i.e. for lifting or moving) with dedicated suspension accessories is possible. For more information on optional accessories, contact your local Kemppi dealer.
