Optional accessories

For installing the optional accessories, refer also to the installation instructions delivered with the equipment. Read also the installation chapters here: Installation.

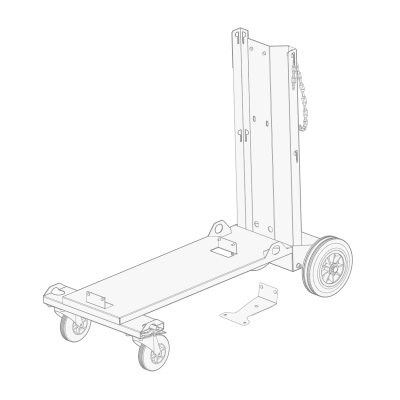

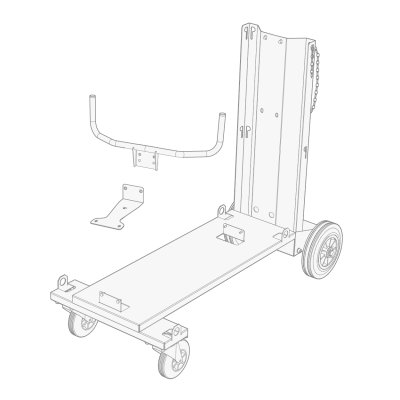

4-wheel cart X3T4

This is a 4-wheel cart with gas bottle rack.

>>  For more information, refer to Installing equipment on X3T4 cart (optional).

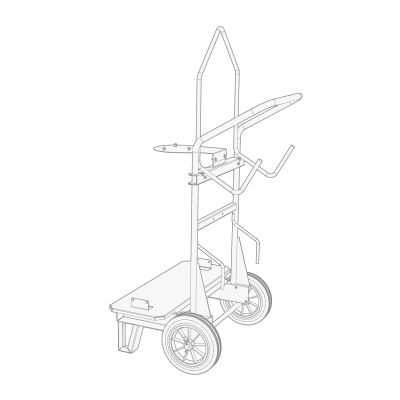

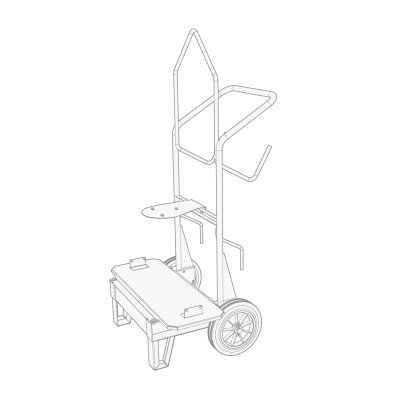

2-wheel trolley X3T2/X3GT2

This is a 2-wheel trolley. The X3T2 model can be used with the standard voltage power sources and with the gas-cooled multi-voltage power sources, the X3GT2 model is suitable to be used with the water-cooled multi-voltage power sources.

>>  For more information, refer to Installing equipment on X3T2 trolley (optional).

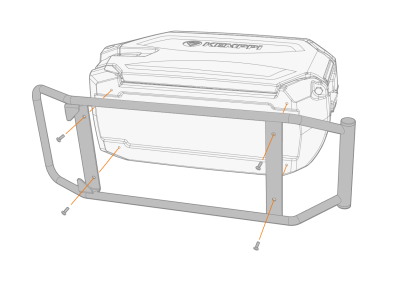

Protection sliders

These are protection sliders for the X3 HD200 wire feeder. The protection sliders (together with the fixed mounting plate) are required for stacked installation with the power source when HD200 is used.

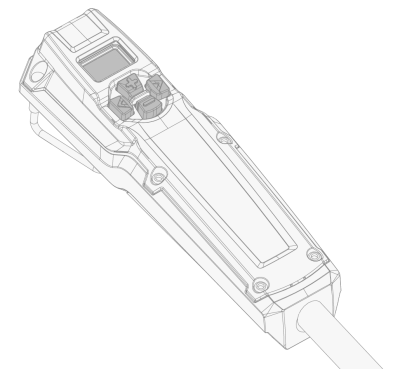

External remote control HR53

This is an external handheld remote control unit.

>>  For more information, refer to Installing remote control HR53 (optional) and Using HR53 remote control.

Torch remote controls

X3 FastMig supports also the following torch remote controls (with the Flexlite GX and GXe welding torch models):

•

GXR10

•

GRe50.

For more information on the torch remote controls, refer to Flexlite GX and GXe operating manuals in Userdoc.

Other accessories

These optional X5 FastMig accessories can be used with the X3 FastMig equipment:

•

2-wheel wire feeder cart

•

4-wheel wire feeder cart

•

4-wheel cart

•

Wire feeder hanger for boom (X5 WF HD300 version)

•

Wire feeder protection sliders (X5 WF HD300 version).

* Some restrictions and/or the need for additional device model specific fixing accessories may apply.

For more information on optional accessories, contact your local Kemppi dealer.
