Installing remote control HR53 (optional)
Remote controls are optional. To enable remote operation, connect the remote control device to the X3 FastMig welding equipment.
|

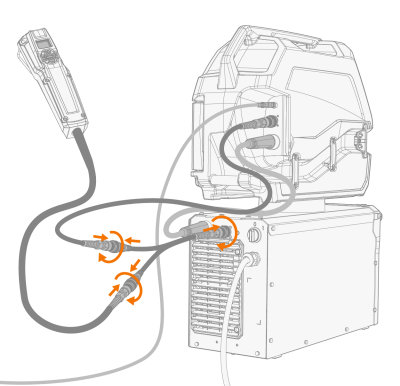

An additional splitter adapter is required to connect the HR53 remote control when also the wire feeder is connected. |
|
1.
|
Connect the splitter adapter to the power source's control cable connector. |
|
2.
|
Connect the control cable (going to the wire feeder) to the splitter adapter's first available female connector. |
|
3.
|
Connect the remote control cable to the splitter adapter's last available female connector. |
X3 FastMig supports also the following torch remote controls with the remote-compatible Flexlite GX and GXe welding torch models:
For more information on the torch remote controls, refer to Flexlite GX and GXe operating manuals in Userdoc.
|
|
X3 power sources can be used for MMA welding and carbon arc gouging also without a wire feeder. The HR53 remote control is required for this standalone use. |
