X3 wire feeder

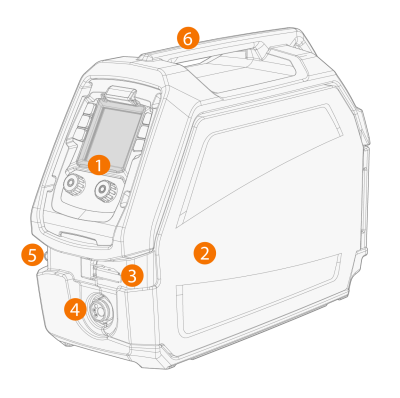

This section describes the structure of the X3 wire feeder.
|
1.
|
Control panel (and hinged control panel display cover) |
>> For more information on the X3 wire feeder control panel, refer to X3 control panel.
|
2.
|
Wire feeder cabinet door |
|
Keep the wire feeder cabinet door closed during welding to reduce the risk of injury or an electric shock. Keep the cabinet door closed also at other times to keep the inside of the wire feeder clean. |
|
3.
|
Wire feeder cabinet door latch |
|
4.
|
Euro connector for welding cable connection |
|
5.
|

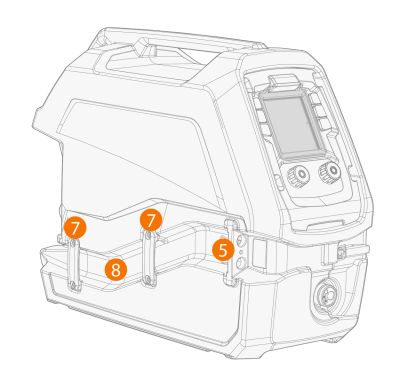

Coolant inlet and outlet connector holder |
|
7.
|
Coolant hose duct brackets |

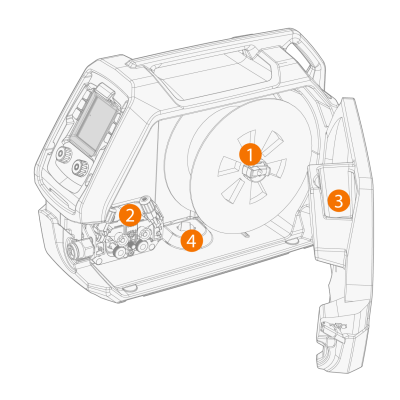

Inside wire feeder (wire feeder cabinet)
|
1.
|
Wire spool and spool hub |
>> For more information on the wire spool, refer to Installing and replacing filler wire and wire spool.
|
2.
|
Wire feed roll mechanism |
>> For temporarily storage of smaller items.
|
4.
|
Aperture for mounting plate connection |
Wire feeder rear
|
1.
|
Welding current cable connector |
|
2.
|
Control cable connector |
|
3.
|
Shielding gas hose connector |
For installing and connecting the cables, refer to X3 interconnection cables and Installing cables.
