X3 interconnection cables
The X3 FastMig interconnection cables come in multiple different lengths and configurations to suit your equipment setup.
For installing the interconnection cables, refer to Installing cables (X3 WF HD300).
|

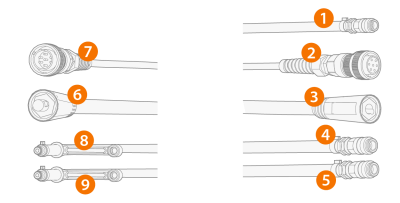

1.
|
Shielding gas hose (WF) |
|
3.
|
Welding current cable (WF) |
|
4.
|
Coolant hose (outlet/inlet, color-coded) (WF) |
|
5.
|
Coolant hose (outlet/inlet, color-coded) (WF) |
|
6.
|
Welding current cable (PS) |
|
8.
|
Water-cooled models only: Coolant hose (outlet/inlet, color-coded) (PS) |
|
9.
|
Water-cooled models only: Coolant hose (outlet/inlet, color-coded) (PS) |
(PS = Power source end of the interconnection cable, WF = Wire feeder end of the interconnection cable.)
Interconnection cable specifications
| X37001MG |
70 mm2 |
1.5 m |
Gas-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X39501MG |
95 mm2 |
1.5 m |
Gas-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X37005MG |
70 mm2 |
5 m |
Gas-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X37010MG |
70 mm2 |
10 m |
Gas-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X37015MG |
70 mm2 |
15 m |
Gas-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X37020MG |
70 mm2 |
20 m |
Gas-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X37025MG |
70 mm2 |
25 m |
Gas-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X37030MG |
70 mm2 |
30 m |
Gas-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X37001MW |
70 mm2 |
1.5 m |
Water-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X39501MW |
95 mm2 |
1.5 m |
Water-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X37005MW |
70 mm2 |
5 m |
Water-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X37010MW |
70 mm2 |
10 m |
Water-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X37015MW |
70 mm2 |
15 m |
Water-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X37020MW |
70 mm2 |
20 m |
Water-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X37025MW |
70 mm2 |
25 m |
Water-cooled |
7-pin (control), snap (water/gas), DIX (current) |
| X37030MW |
70 mm2 |
30 m |
Water-cooled |
7-pin (control), snap (water/gas), DIX (current) |
