Connecting welding torch and earth return cable
X3 FastMig is designed to be used with the Kemppi Flexlite GXe MIG welding torches. For the Flexlite GXe operating instructions, refer to userdoc.kemppi.com.
|
Always check that the wire liner, contact tip and gas nozzle are suitable for the job. |
To connect the MIG welding torch to the X3 wire feeder, proceed as follows:
| 1. | Push the welding torch connector (Euro) into the wire feeder's torch connector (Euro) and hand-tighten the collar. |
| 2. | If your setup includes a power source with cooling unit and a water-cooled torch, connect also the cooling liquid hoses. The hoses are color-coded. |
| 3. | Install and load the filler wire as described in Installing and replacing filler wire and wire spool. |
| 4. | Check the gas flow. Refer to Installing gas bottle and testing gas flow for more information. |
| 5. | Connect the earth return cable to the power source's connector (-) in the front. |

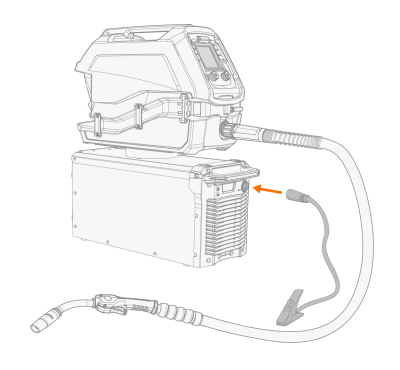

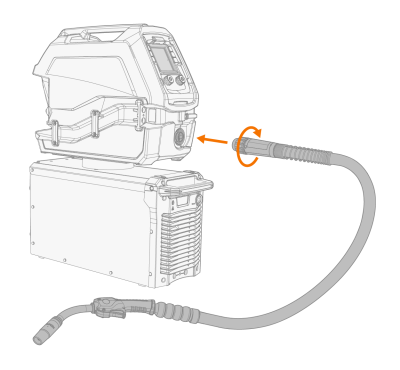

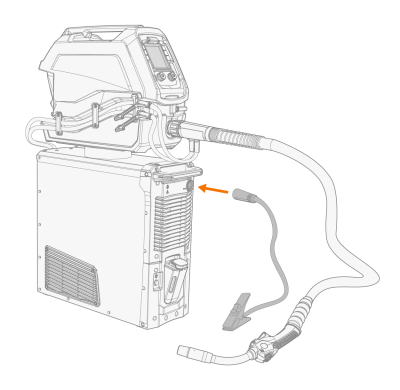

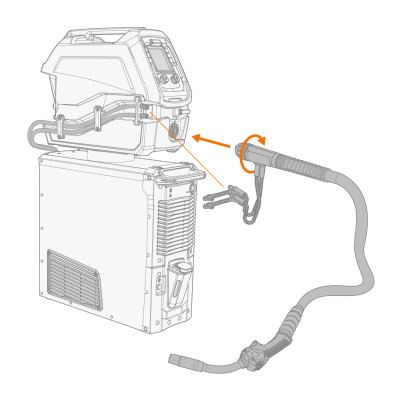

(The above illustration shows different equipment setup options.)
