Connecting welding gun

Master M is designed to be used with the Kemppi Flexlite GX welding guns. For the Flexlite GX operating instructions, refer to userdoc.kemppi.com.

Always check that the wire liner, contact tip and gas nozzle are suitable for the job.

1.

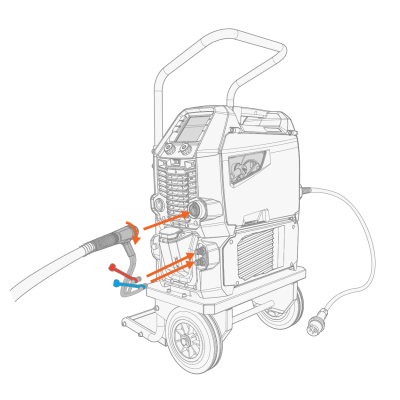

Push the welding gun connector into the euro connector and hand-tighten the collar.

2.

If your setup includes a water-cooled gun, connect the cooling liquid hoses to the cooling unit. The hoses are color-coded.

3.

Install and load the filler wire as described in Installing and changing wire (200 mm spool).

4.

Check the gas flow. Refer to Installing gas bottle and testing gas flow for more information.
