Installing equipment on stand (optional)

The welding equipment can be installed with or without the cooling unit on a stand or a 4-wheel undercarriage (available as accessories). The equipment installation principle is the same for both.

For more information on installing the power source on top of the cooling unit, refer to Installing cooling unit (optional).

Tools needed:

1.

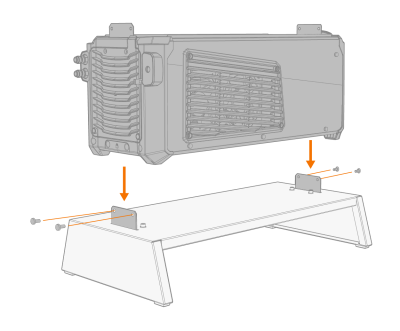

Install the cooling unit on the stand so that the fixing plates align and go into their slots. Fix the cooling unit to the stand with two screws in the front (M5x12) and two screws in the rear (M5x12).

2.

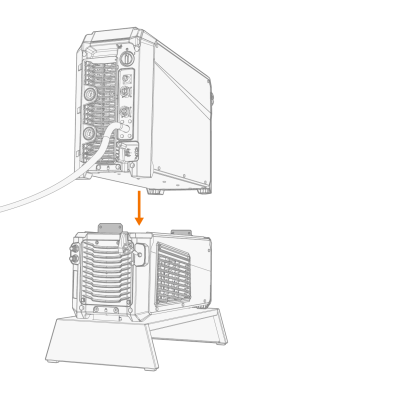

Install the power source on top of the cooling unit and fix the units together with two screws in the front and two screws in the rear. Refer to Installing cooling unit (optional) for installation details.

For installing RCM on top of the power source, refer to Installing RCM on power source (optional).
