Installing RCM on power source (optional)

Tools needed:

1.

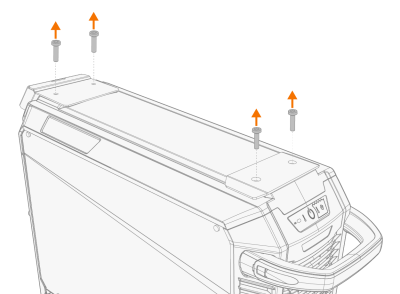

Remove the power source top cover screws.

2.

Place the fixing plates to the power source and secure them with the screws provided.

3.

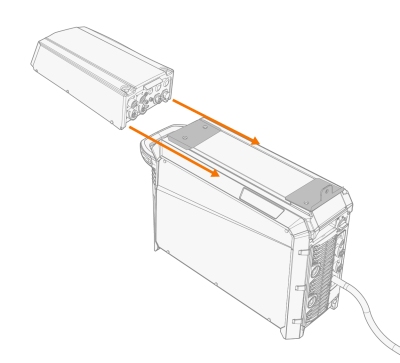

Slide RCM into place.

4.

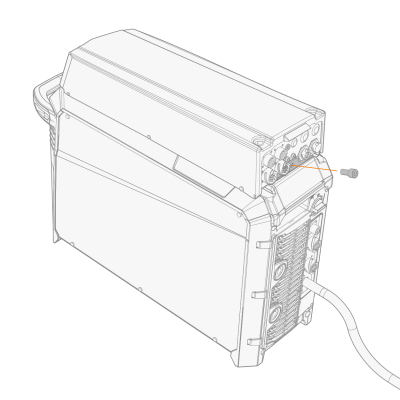

Fix the units together with the fixing bracket and screw.
