Installing fieldbus module
This section describes how to install a fieldbus module. In these instructions the fieldbus module cable is routed through the cable inlet with a cable clamp. For information on other cable inlets in RCM, refer to Routing cables into RCM.
For instructions on removing and attaching the RCM top cover, refer to Removing and attaching RCM top cover.
Tools needed:
|

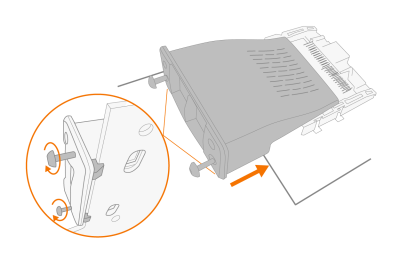

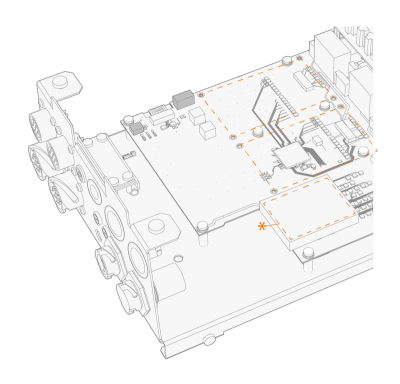

1. | Push the fieldbus module into the fieldbus module slot (*). Fasten the fixing screws to secure the fieldbus module in place. |

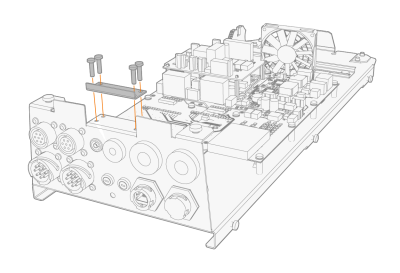

2. | Remove the cable clamp by unscrewing the fixing screws. |

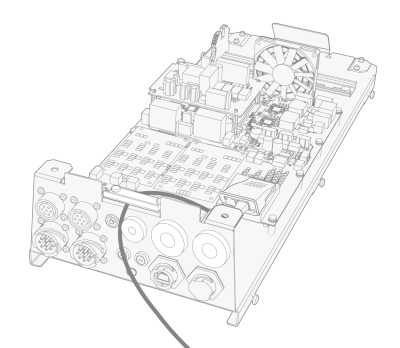

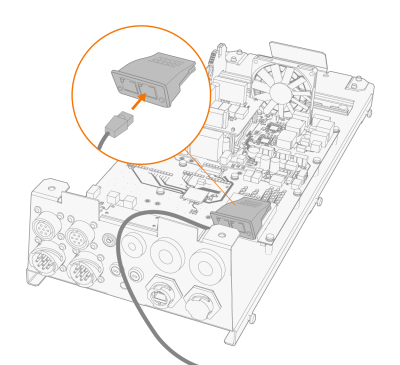

3. | Pass the fieldbus module cable through the aperture and connect it to the fieldbus module. |
![]() |
Depending on the fieldbus module, the cable may be different. |
4. | Reattach the cable clamp and tighten the fixing screws. |
