Removing and attaching RCM top cover

Tools needed:

To remove the RCM top cover:

1.

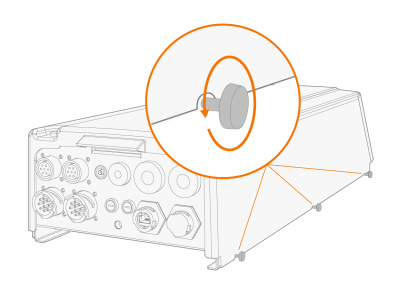

Loosen the screws on both sides of the RCM case.

2.

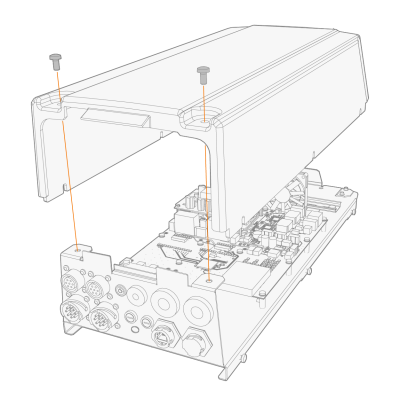

Unscrew the fixing screws on the top cover and remove the cover.

To attach the RCM top cover:

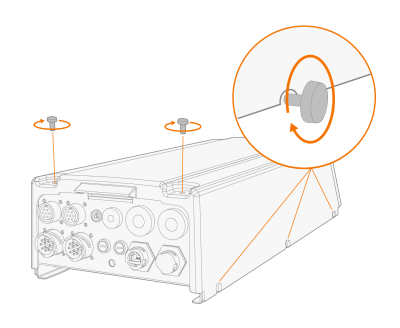

Align the holes on the cover with the screws on the sides of the RCM case. Tighten the six screws on the sides and the two screws on the top.
