Routing cables into RCM

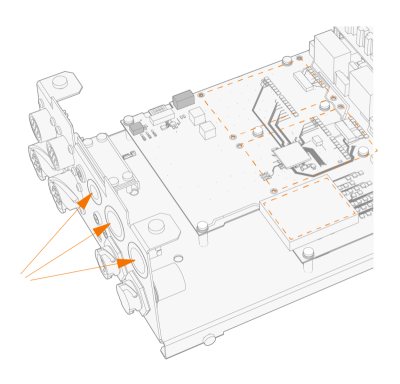

RCM has several cable inlets for different sized cables: one cable inlet with a cable clamp (used for strain relief) and three cable inlets with grommets.

For instructions on removing and attaching the RCM top cover, refer to Removing and attaching RCM top cover.

Routing cable through cable inlet with cable clamp

1.

Remove the cable clamp by unscrewing the fixing screws.

2.

Route the cable through the inlet.

3.

Reattach the cable clamp and tighten the fixing screws.

Routing cable through cable inlet with grommet

Puncture the grommet and route the cable through the inlet.
