Wire feeder views
Welding view
In the Welding view, you can:
| • | See an overview of the settings of the selected welding program |
| • | Adjust the main parameters (welding power and fine tuning) |

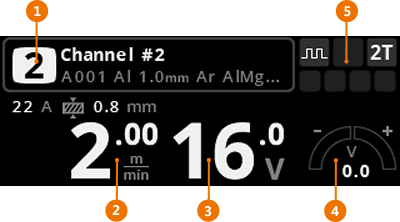

| 1. | Memory channel |
| 2. | Welding power |
>> The unit of the parameter varies according to the welding process.
| 3. | Voltage |
|
Not all processes have this parameter. |
| 4. | Fine tuning |
>> The unit of the parameter varies according to the welding process.
| 5. | Applied settings displayed in symbols |
>> For more information on symbols, see Kemppi symbols.
Adjust the welding power with the left control knob.
|
|
The welding parameter shown is Wire feed speed, Current or Plate Thickness. |
Fine tune the secondary welding parameter with the right control knob. The adjustable secondary parameter varies according to the welding process and function.
Memory Channels view
Welding parameters are stored in the memory channels. The memory channel displays the same information of the welding parameters as the Welding view. Each user has their own memory channels.
Press the Channel button on the left to see the Channel view. A menu of the memory channels appears on the left side of the display. To take a channel into use, move focus to it with the right control knob. A tilted number of the memory channel indicates that the parameters of the original memory channel have been modified.
To save a modified channel, press and hold the Channel button or press Save on the green button of the right knob.
Settings view
For more information on wire feeder's settings, see Wire feeder settings view.
