Installing wheels
To have turning wheels in the front and the back, install the front wheel assembly to the front of the unit. To have fixed wheels in the front, install the rear wheel assembly to the front of the unit. See also Installing optional gas cylinder cart.
Proceed as follows:
Install the rear wheels:
|
1.
|

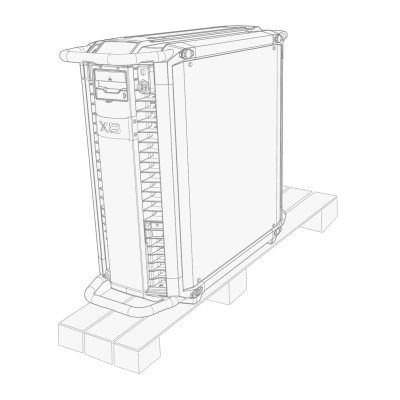

Remove the packaging from the sides but leave the power source resting on the pallet. |
|
2.
|

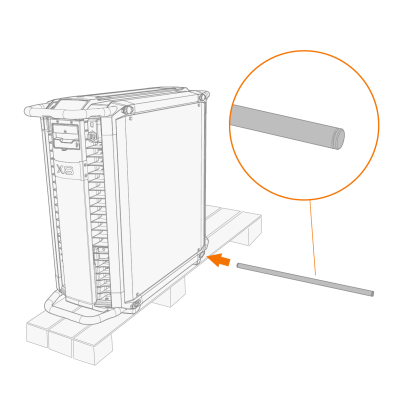

Push the rear axle through the opening in the bottom of the rear side of the unit and set the axle in the middle. |
|
3.
|

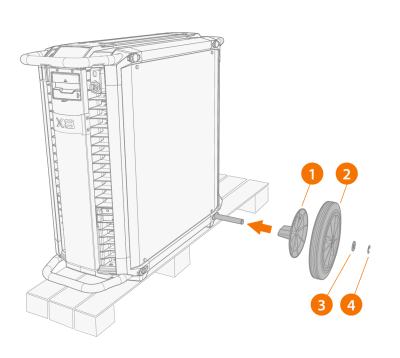

Slide the two wheel spacers (1) onto the axle. |
|
4.
|
Slide the two wheels (2) onto the axle. |
|
5.
|
Slide the two washers (3) onto the axle. |
|
6.
|
Slide the two retaining rings (4) on the axle, until they lock into the groove on the axle. |
Install the front wheels:
|
1.
|

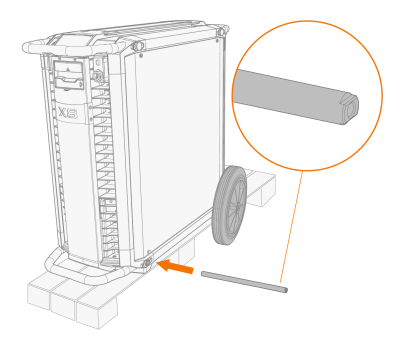

Push the front axle through the opening in the bottom of the front side of the unit and set the axle in the middle. |
|
2.
|

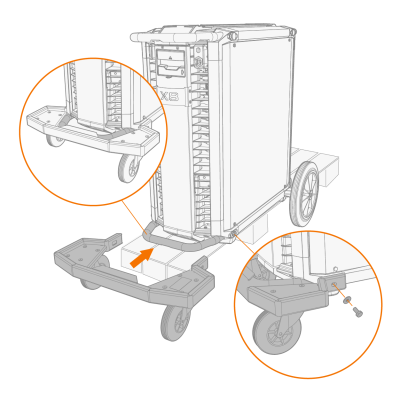

Place the transportation handle over the ridge in the wheel assembly and align the holes in the wheel assembly with the ends of the axle. |
|
3.
|
Attach the front wheel assembly to the end of the axle with a bolt (1) and washer (2) from both sides. |
|
4.
|

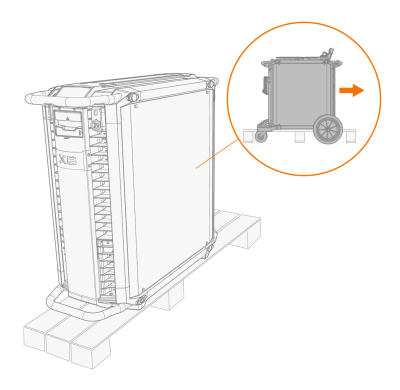

When the wheels are attached, lift the power source off the pallet. |
