Optional accessories
| X5 PS X5 CU |
X5 WF 300 AP/APC |
X5 WF 300 Manual |
X5 WF 200 Manual |
X5 WF HD300 AP/APC |
X5 WF HD300 M |
|
| 4-wheel cart with gas bottle rack1 | ● | ● | ● | o | ● | ● |
| 2-wheel cart1 | ● | ● | ● | o | ● | ● |
| Remote control HR40 (2-knob control) | - | ● | ● | ● | ● | ● |
| Remote control HR43 (1-knob control) | - | ● | ● | ● | ● | ● |
| Remote control HR55 (digital) | - | ● | ● | ● | ● | ● |
| Accessory rack | ● | - | - | - | - | - |
| Wire feeder cabinet heater | - | ● | ● | ● | ● | ● |
| Built-in rotameter for gas | - | ● | ● | ●3 | ● | ● |
| Gas guard | - | - | - | - | ● | ● |
| SuperSnake GTX subfeeder | - | ● | ● | - | ● | ● |
| Wire feeder cart, 4-wheel | - | ● | ● | o | ● | ● |
| Wire feeder cart, 2-wheel | - | ● | ● | - | ● | ● |
| Wire feeder rotating plate, single and double | - | ● | ● | o | ● | ● |
| Wire feeder hanger for boom, single and double2 | - | ● | ● | - | ● | ● |
| Wire feeder counterbalance arm | - | ● | ● | o | ● | ● |
| Gun holder | - | ● | ● | - | - | - |
| Wire drum kit | - | ● | ● | - | ● | ● |
| Additional steel pipe frame | - | - | - | ● | - | - |
| Wire feeder protection sliders | - | ● | ● | - | ● | ● |
| Remote pendant kit | - | ● | ● | - | - | - |
● = Available
o = Can be used with the additional steel pipe frame
- = Not available or not applicable
1) Designed to be used with a full system (equipment stacked on top of each other).
2) Double wire feeder hanger for boom not available with X5 Wire Feeder HD300 models.
3) Cannot be installed afterward, a separate wire feeder model with the rotameter factory-installed is available.
Read also the installation notes here: Installation.
The accessories described here are delivered with dedicated installation instructions.
Wire drum kit (for X5 WF 300)
To use the wire drum kit, drill a hole at the back of X5 Wire Feeder 300 transparent cover.
Wire feeder hanger for boom (for X5 WF 300)
The wire feeder hanger for boom facilitates welding where it is difficult to bring the full X5 FastMig welding system.
|
Do not hang the wire feeder from the handle. Use the wire feeder hanger for boom instead. |

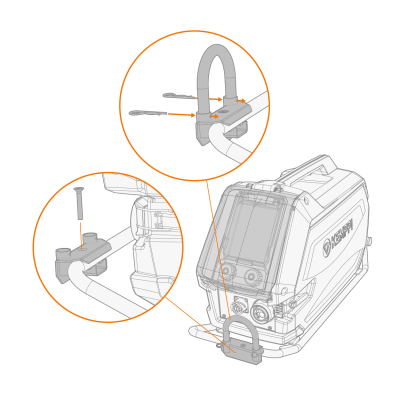

Wire feeder hanger for boom (for X5 WF HD300)
The wire feeder hanger for boom facilitates welding where it is difficult to bring the full X5 FastMig welding system.
|
|
Do not hang the wire feeder from the handle. Use the wire feeder hanger for boom instead. |
Wire feeder counterbalance arm (for X5 WF 300)
The wire feeder counterbalance arm reduces the weight of the cable bundle over the working area.

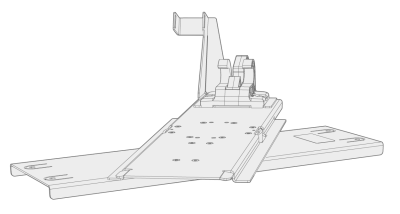

Double wire feeder rotating plate (for X5 WF 300)
The double wire feeder rotating plate allows the use of two wire feeders on one power source.
Double interconnection cable adapter
The double interconnection cable adapter allows to connect two wire feeders to one power source.

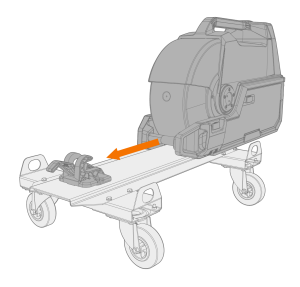

Wire feeder cart (for X5 WF 300)
The wire feeder cart allows more convenient wire feeder movement on site.
Accessory rack
The accessory rack holds the small parts and tools needed for welding. Install it on the side of the welding machine.
Wire feeder cabinet heater
The wire feeder cabinet heater keeps the temperature higher to prevent moisture from condensing inside the cabinet.
Control panel remote pendant kit (for X5 WF 300)
The control panel remote pendant kit allows the wire feeder control panel to be removed from the wire feeder device and to be used remotely, within the remote cable length distance.

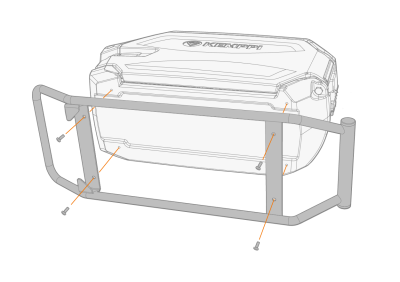

Wire feeder protection sliders (for X5 WF 300/HD300)
Protection sliders can be used under the wire feeder to prevent damaging the wire feeder bottom. With X5 Wire Feeder HD300 protection sliders, an additional bracket provides also mechanical support for the welding cable connection.
For more information on optional accessories, contact your local Kemppi dealer.
For installing the optional accessories, refer to the installation instructions delivered with the equipment.
