Wire feed mechanism

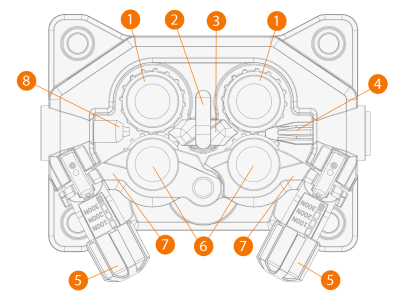

X5 Wire Feeder 300 wire feed mechanism:

1.

Drive rolls and drive roll mounting caps

2.

Middle guide tube locking clip

3.

Middle guide tube

4.

Inlet guide tube

5.

Pressure handles

6.

Pressure rolls and pressure roll mounting pins

7.

Pressure roll locking arms

8.

Outlet guide tube.



For replacing the wire feed rolls, refer to Installing and replacing feed rolls.

For replacing the wire guide tubes, refer to Installing and replacing wire guide tubes
