Installing and replacing wire guide tubes
The wire feed mechanism includes three wire guide tubes. Replace them when the filler wire diameter grows or the material changes.
|
When replacing the outlet guide tube, the welding gun must be detached. |
Select the new wire guide tubes according to the tables here: Wire feeder consumables.
To replace the wire guide tubes:
|
1.
|
Release the pressure arms and remove the filler wire from the system. |
|
2.
|

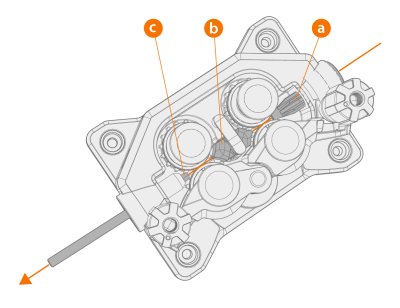

Pull out the inlet guide tube (a) and insert a new one in its place. |
|
3.
|

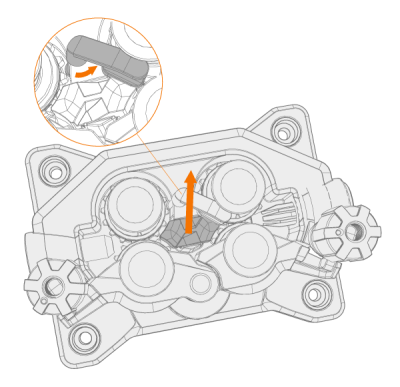

Turn the locking clip aside to free the middle guide tube (b) for replacement. |
|
4.
|
Insert a new middle guide tube in its slot and push it properly in place. Ensure that the mark arrow points to the wire running direction. |
|
5.
|
Turn locking clip back to lock down the new middle tube. |
|
6.
|
Replace the outlet guide tube (c) by pushing the old outlet tube out from either direction. |
