Wire spools

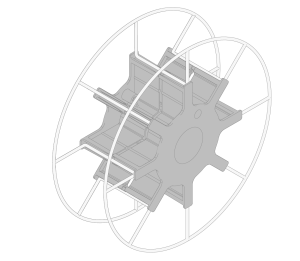

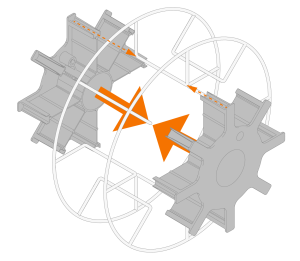

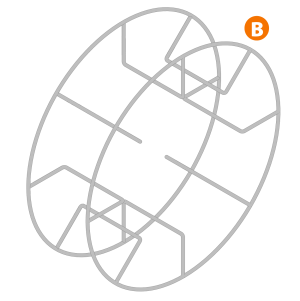

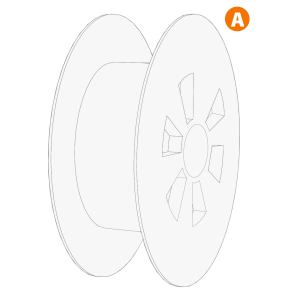

X3 wire feeder uses the standard wire spools (A) without additional adapters. Wire spools with a large center hole, e.g. a wire basket rim (B), require an additional spool adapter (available as Kemppi accessory (SP008960)):

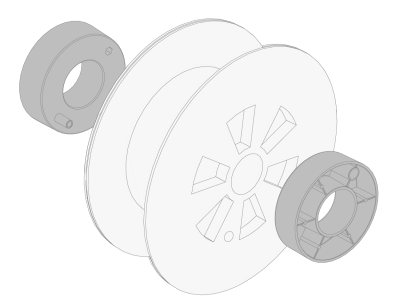

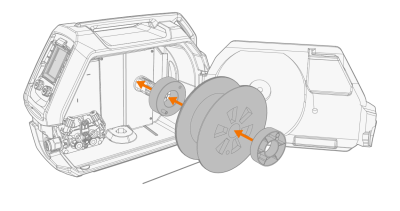

The narrower 200 mm standard wire spool can also be used with the X3 wire feeder, when used together with spacer adapters (available as Kemppi accessory (SP008959)):
|

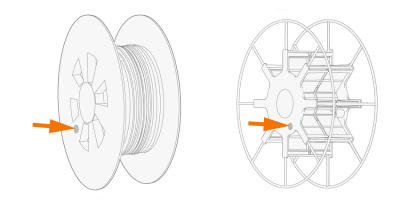

When installed, the pin next to the wire spool hub in the wire feeder must align and go into the hole in the spool or spool adapter.
|
