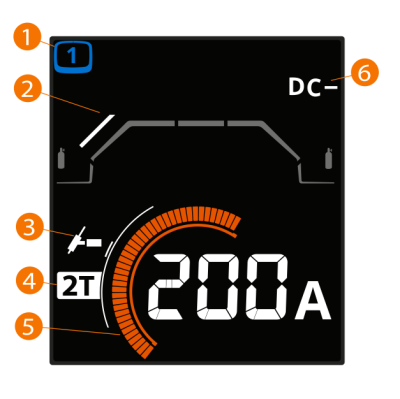

Main view

Main view is the main welding view. The content displayed depends on the welding process and features and functions used.

1.

Active memory channel

2.

Applied parameters and functions (for more information, refer to Welding parameters)

3.

Active welding process

4.

Applied trigger logic function

5.

Welding current

>>  In the MMA welding process, pressing the control knob button switches from welding current adjustment to arc force adjustment (for more information, refer to MMA functions and features)

6.

Applied current mode.

Control knob functions in the main view:

•

TIG:

>>  Welding current adjustment

>>  Long press of the control knob button starts gas test (during the gas test, you can adjust the gas test time by turning the control knob)

•

MMA:

>>  Welding current adjustment

>>  Arc force adjustment

•

Cleaning and polishing:

>>  Current adjustment.
