Installing equipment on cart (optional)
Minarc T 223 ACDC has two transport unit options: a 2-wheel cart with a gas bottle rack (T22M) and a 2-wheel cart without a gas bottle rack (T32A).
|
You can install the power source on the T22M cart with or without the cooling unit.
Do not install the cooling unit on the T32A cart. Otherwise the bottom securing interface is the same with both carts. |
|
|
The maximum recommended size of the gas bottle to be installed on the T22M cart is 20 liters. |
Tools needed:
|
To install the power source on the T22M cart:

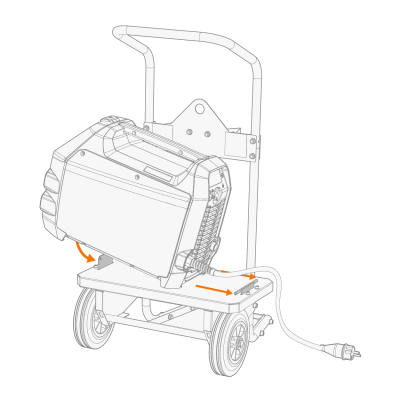

| 1. | Install the power source on the cart. |

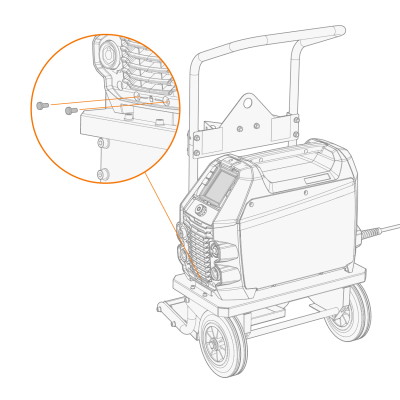

| 2. | Fix the power source to the cart with two screws (M5x12) in the front. |
To install the power source and the cooling unit on the T22M cart:
| 1. | Install the cooling unit on the cart. |

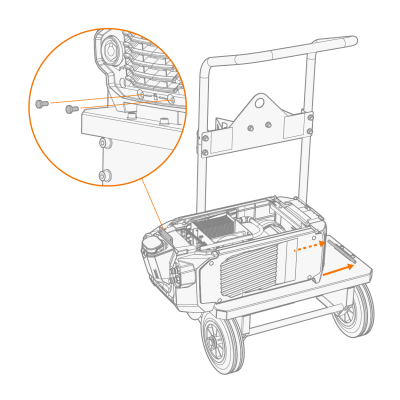

| 2. | Fix the cooling unit to the cart with two screws (M5x12) in the front. |
| 3. | Install the power source on top of the cooling unit. Refer to Installing cooling unit (optional) for installation details. |

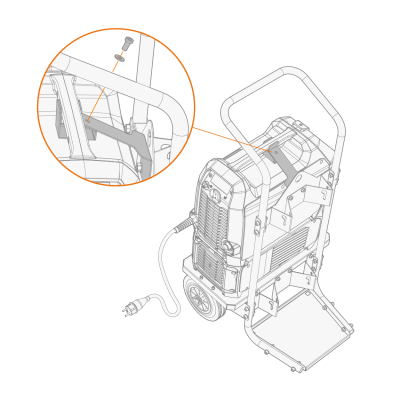

| 4. | Secure the transportation handle to the cart with an additional bracket and a screw (M8x16). |

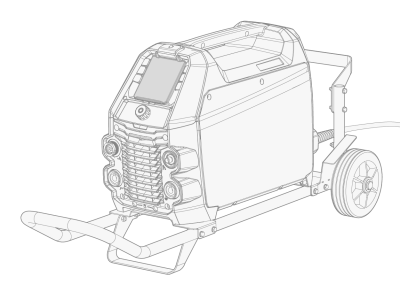

To install the power source on the T32A cart:
| 1. | Install the power source on the cart. |
| 2. | Fix the device to the cart with two screws in the front (M5x12). |
|
The T32A cart must be in horizontal position during welding. |
For lifting the equipment, refer to Lifting equipment.
