Lifting equipment

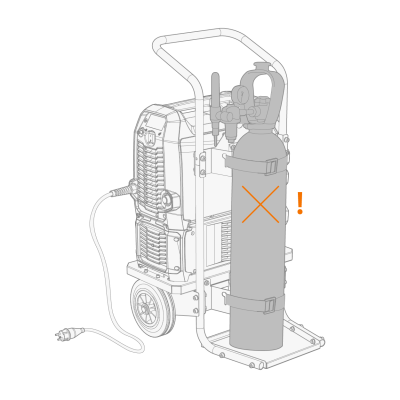

If a gas bottle is installed on cart, DO NOT attempt to lift the cart with the gas bottle in place.

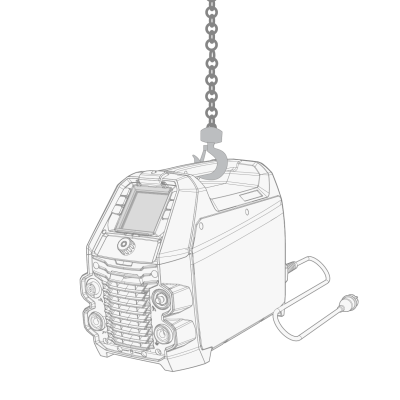

Transportation handle:

The transportation handle can be used for mechanical lifting (for moving only, not for hanging) when the device is not mounted on a cooling unit or cart.

Connect the hoist hook to the transportation handle.

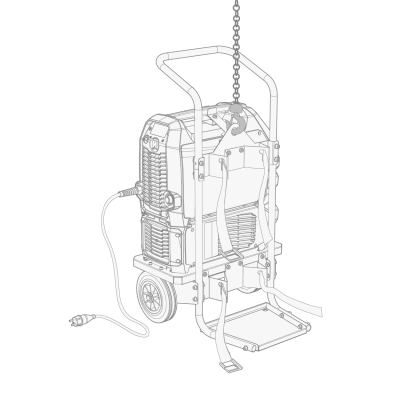

2-wheel cart:

1.

Ensure that the welding equipment is properly secured to the cart.

2.

Connect the hoist hook to the lifting handle on the cart.

Do not lift the device when it is installed on the T32A cart.
