Connecting TIG welding torch

Minarc T 223 ACDC is designed to be used with the Kemppi Flexlite TX TIG welding torches. For more information, refer to Kemppi Userdoc.

1.

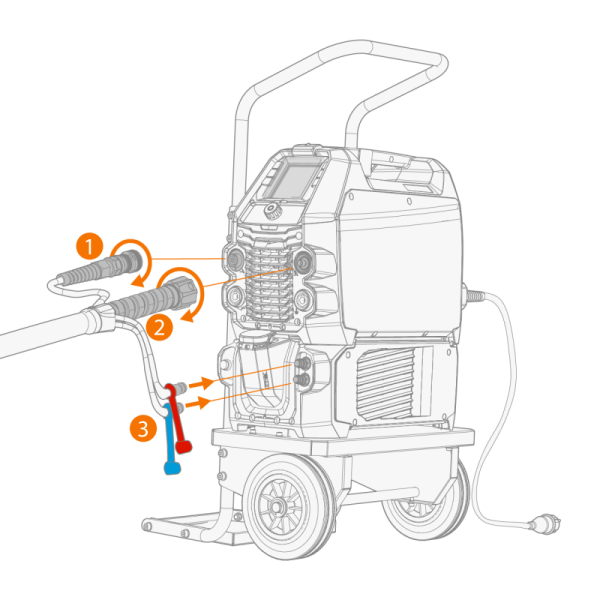

Connect the control cable (1) and welding cable (2) to the corresponding connectors in the power source. Secure by turning the connectors clockwise.

2.

If your setup includes a water-cooled torch, connect the cooling liquid hoses (3) to the cooling unit. The hoses are color-coded.

3.

Check the gas flow. For more information, refer to Installing gas bottle and testing gas flow.
