Installing equipment on cart (optional)

Master M has two transport unit options: a 2-wheel cart with a gas bottle rack (T22M) and a 2-wheel cart without a gas bottle rack (T32A).

You can install the Master M device on the T22M cart with or without the cooling unit. Do not install the cooling unit on the T32A cart. Otherwise the bottom securing interface is the same with both carts.

The maximum recommended size of the gas bottle to be installed on the T22M cart is 20 liters.

Tools needed:

To install the Master M device on the T22M cart:

1.

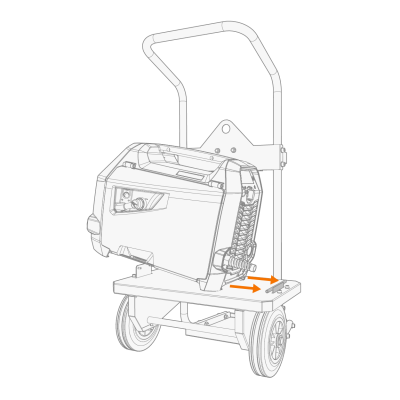

Install the Master M device on the cart.

2.

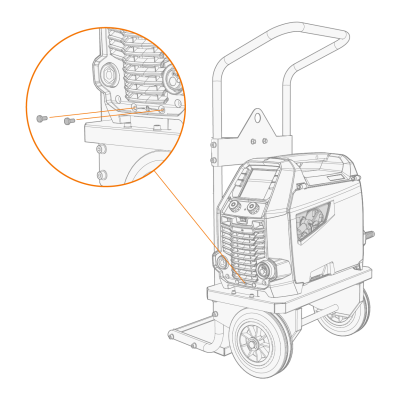

Fix the device to the cart with two screws (M5x12) in the front.

To install the Master M device and the cooling unit on the T22M cart:

1.

Install the cooling unit on the cart.

2.

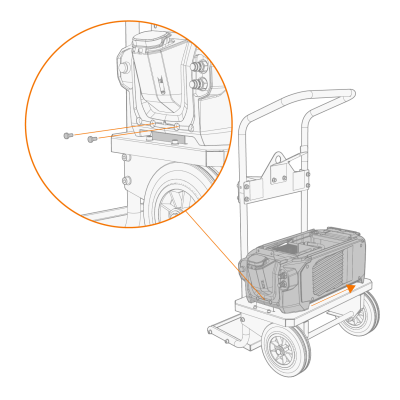

Fix the cooling unit to the cart with two screws (M5x12) in the front.

3.

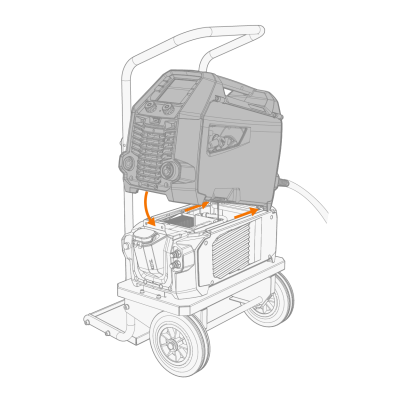

Install the Master M device on top of the cooling unit. Refer to Installing cooling unit (optional) for installation details.

4.

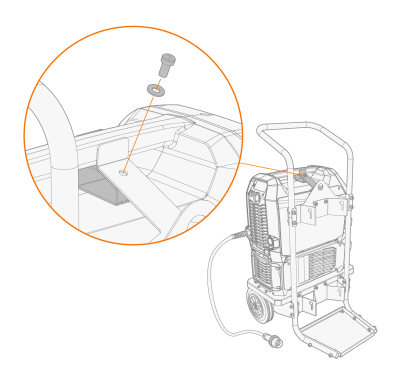

Secure the transportation handle to the cart with an additional bracket and a screw (M8x16).

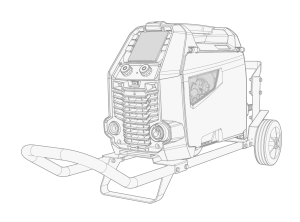

To install the Master M device on the T32A cart:

1.

Install the Master M device on the cart.

2.

Fix the device to the cart with two screws in the front (M5x12).

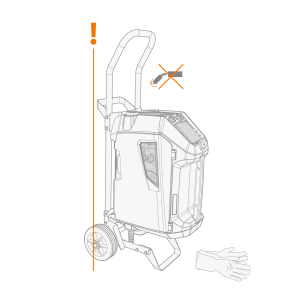

The T32A cart must be in horizontal position during welding.

For lifting the Master M equipment, refer to Lifting Master M equipment.
