Installing cooling unit (optional)

The cooling unit is not available for Master M 205 with 110...130 V supply voltage.

The cooling unit must be installed by authorized service personnel.

Tools needed:

1.

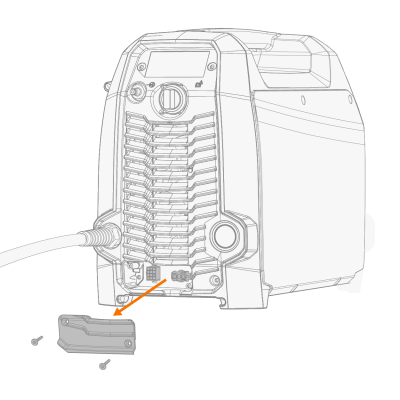

Remove the small connector cover in the rear of the power source.

2.

Route the cooling unit's connection cables so that they remain accessible through the next steps.

3.

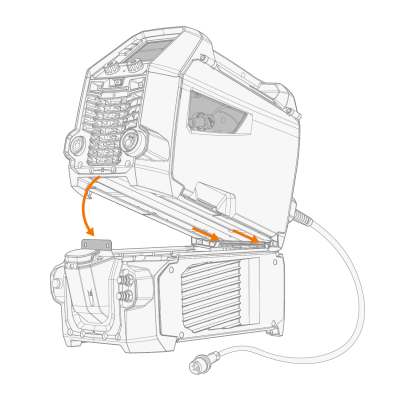

Lift the Master M device on top of the cooling unit so that the locking interfaces align and the fixing plate goes into its slot.

Ensure that the cooling unit's connection cables are not caught and/or damaged between the edges.

4.

Fix the units together with two screws (M5x12) in the front.

5.

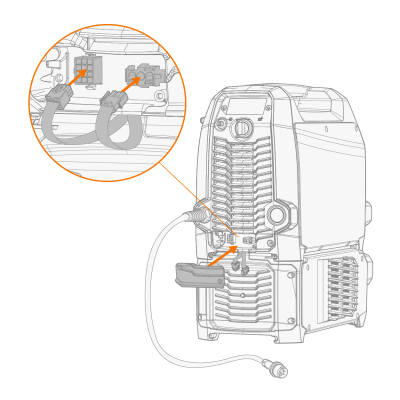

Connect the cooling unit cables.

6.

Replace the small connector cover.
