Installing welding torch on cobot
Install the Flexlite GXe-C welding torch on a cobot using the mounting bracket (GXe-C Bracket Flex Mount S/M) and the adapter flange (ISO 9409-1-50 M6 Adapter Flange).
|
Do not exceed the torque values given. Over-tightening may damage the fixing accessories. |
Tools needed:
|
3 / 4 / 5 mm |

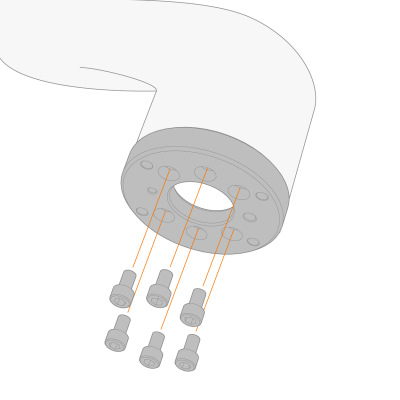

| 1. | Install the adapter flange on the cobot with the six fixing screws. (For Nm torque, refer to the cobot manufacturer's operating manual.) |

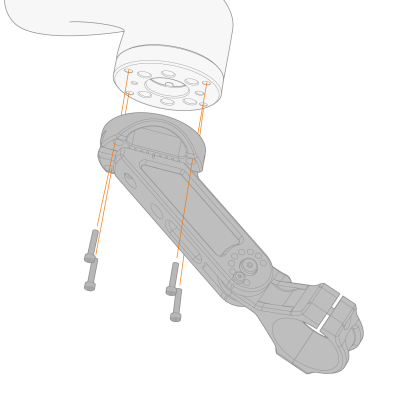

| 2. | Install the mounting bracket on the adapter flange with the four fixing screws. Tighten to 1.8 Nm torque. |

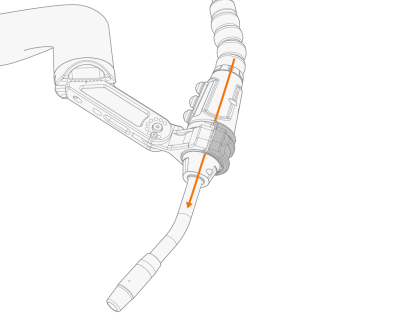

| 3. | Install the GXe-C welding torch into the welding torch holder. |

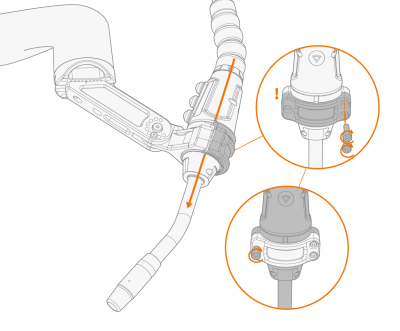

| 4. | Tighten first the two fixing screws on the right and then the fixing screw on the left to 8 Nm torque. |
For instructions on adjusting the welding torch angle and position, refer to Adjusting welding torch angle and Adjusting welding torch position.
