Adjusting welding torch position

Tools needed:

5 mm

1.

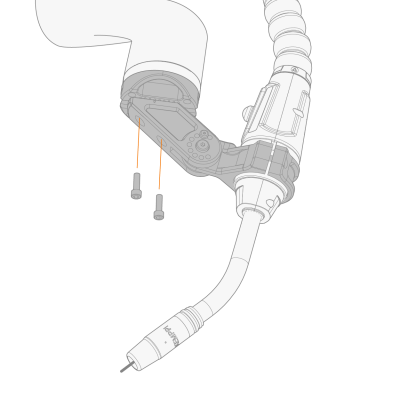

Remove the two fixing screws from the mounting bracket.

2.

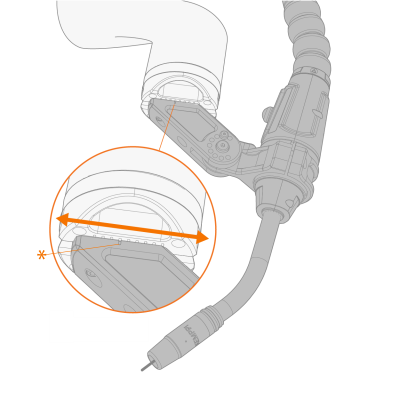

Slide the welding torch to the correct position.

The welding torch position is adjustable in 5 mm increments. Make sure the alignment mark (*) aligns with the scale mark.

3.

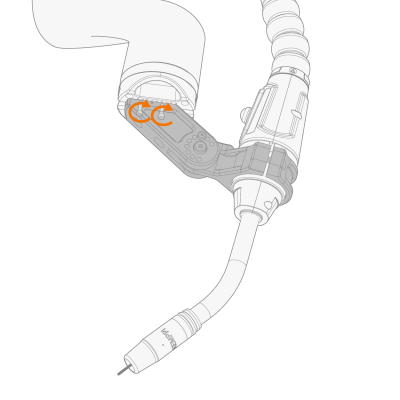

Lock the position of the welding torch with the two fixing screws. Tighten to 8 Nm torque.
