Adjusting welding torch angle

Tools needed:

2.5 / 4 mm

1.

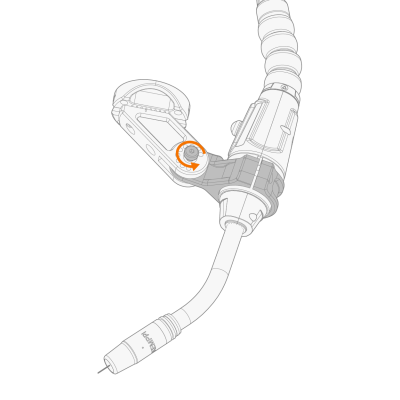

Loosen the welding torch holder's fixing screw.

2.

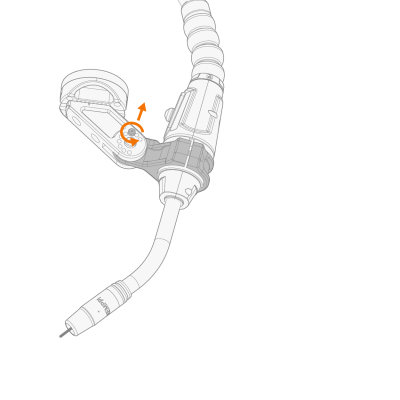

Remove the angle adjustment screw.

3.

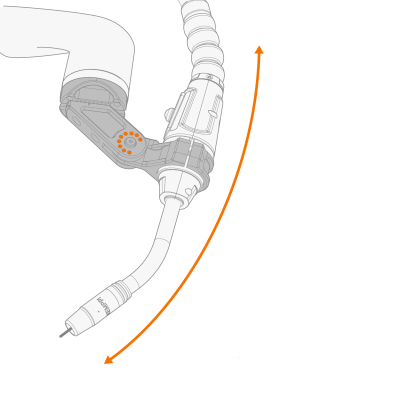

Find the correct angle. For more information, refer to Bracket angles.

4.

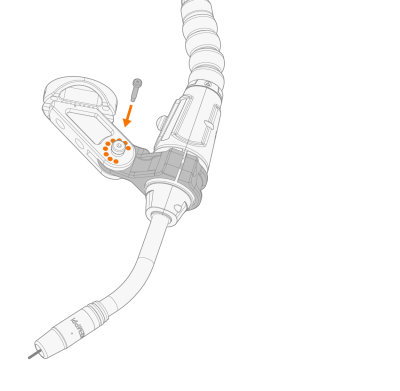

Lock the angle by inserting the angle adjustment screw. Tighten to 0.5 Nm torque (or hand-tighten).

5.

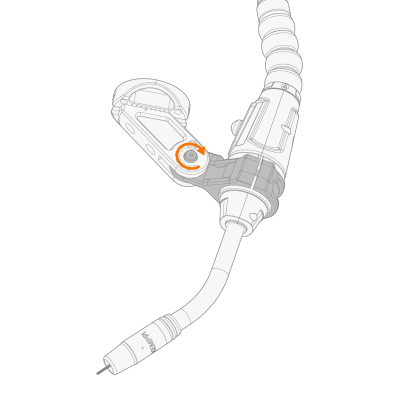

Tighten the welding torch holder's fixing screw to 8 Nm torque.
