Bracket angles

This section describes the locking positions of the angle adjustment screws for the different bracket angles.

The bracket angle is adjusted in 5° increments. Each increment has a dedicated screw locking position.

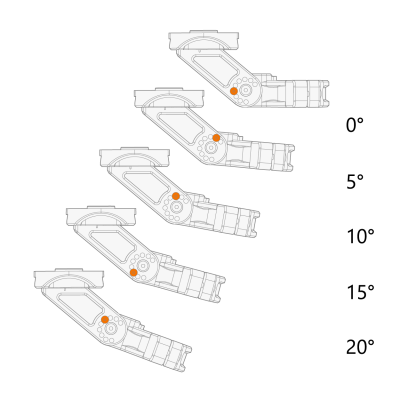

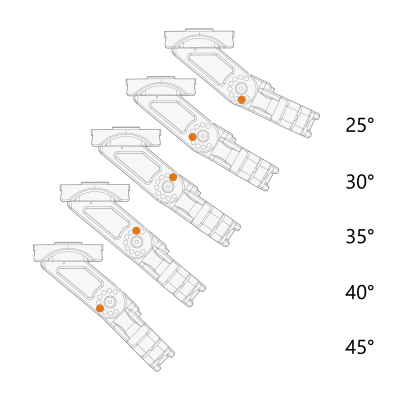

GXe-C Bracket Flex Mount S

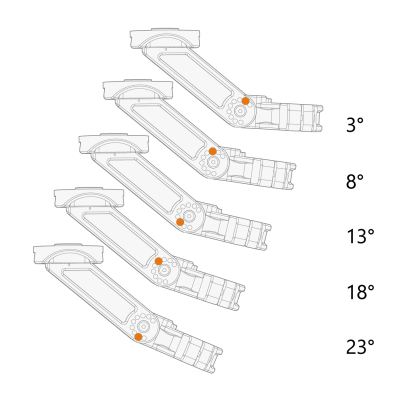

GXe-C Bracket Flex Mount M
