Replacing wire liner for multi-neck

With Flexlite GX multi-neck welding guns the wire liner needs to be replaced separately for the neck. For more information on wire liner replacement in general, refer to Replacing steel wire liner and Replacing DL Chili wire liner.



1.

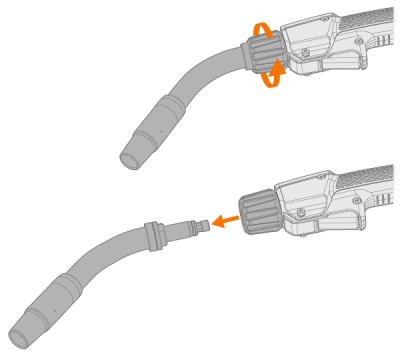

Remove the neck.

2.

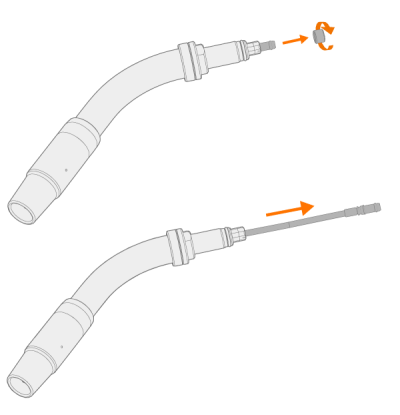

Release the neck liner fastener and remove the old neck wire liner.

3.

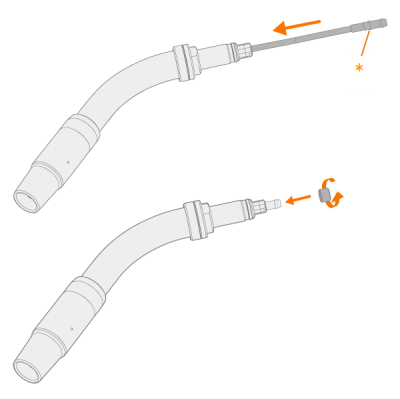

Insert the new neck wire liner into the neck and ensure that it goes all the way through and the liner's end(*) sits firmly in its housing. Secure with the fastener.

4.

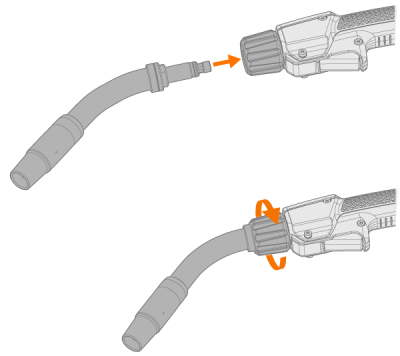

Attach the assembled neck to the gun body. Secure with the neck tightening collar.



Hand-tighten only. Over-tightening and/or using a tool can damage the gun components.
