X8 SuperSnake GT02XW Manual 1920890, rev. 1944



Voltage sensing cable calibration

The welding system must be calibrated with the voltage sensing cable when you start welding the first time. The calibration must be repeated every time when you change the length of interconnection cable, earth return cable, subfeeder cable or welding gun cable.

1.

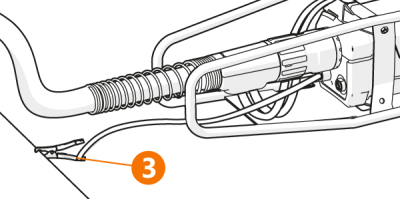

Connect the voltage sensing cable (3) to the X8 SuperSnake GT02XW.

2.

Attach the earth return cable and the voltage sensing cable to the work piece.

3.

Weld at least 4 welds, 5 seconds each.

Once calibrated, the voltage sensing cable can be disconnected, except when the WiseRoot+ and WiseThin+ processes are used. With WiseRoot+ and WiseThin+, the voltage sensing cable must always be connected.
