Welding programs in Control Pad
Select the mode in Settings > Mode. Then select one of the welding programs in Welding program. The MMA and GOUGING modes have one welding program each, and you can adjust their settings in Parameters.

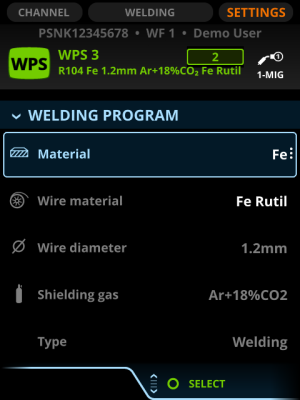

Figure: The Welding program menu in Settings:
You can use the filters under Welding program to filter the welding programs on the selection list. You can also select the needed welding program without using the filters.
The parameters available in Settings vary according to the selected welding process and the Basic/Advanced mode.
Welding program menu
The filters under Welding program are:
| 1. | Material |
>> Select the material of the welding piece.
| 2. | Wire material |
| 3. | Wire diameter |
| 4. | Shielding gas |
| 5. | Type |
>> Select welding/brazing or cladding.
| 6. | Process |
| 7. | Polarity |
>> Not available for all materials.
>> Which polarity is in use. If the polarity is positive (+), connect the + side to the wire feeder.
| 8. | Welding program |
>> After filtering, this column displays the suitable welding programs.
