Control Pad views: Channel

Welding parameters are stored in the memory channels. The memory channel displays the same information of the welding parameters as the Welding view. To take a channel into use, move the focus to it. Each user has their own memory channels.

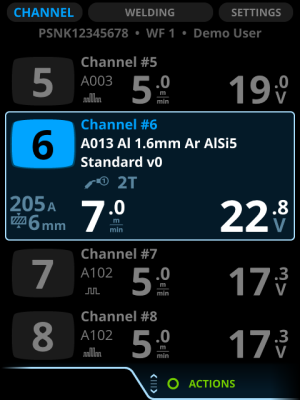

Figure: The Channel view:

To adjust the welding parameters of the channel in focus, press the Menu or Settings button. When you adjust a parameter, the number of the memory channel tilts to the right to indicate a difference from the saved settings.

A WPS defines a range of values for welding parameters. If a WPS is used to create a memory channel, the parameters are set in the middle of the range.
