Replacing feed rolls
Replace the feed rolls when the material and diameter of the filler wire changes.
Proceed as follows:
|
1.
|

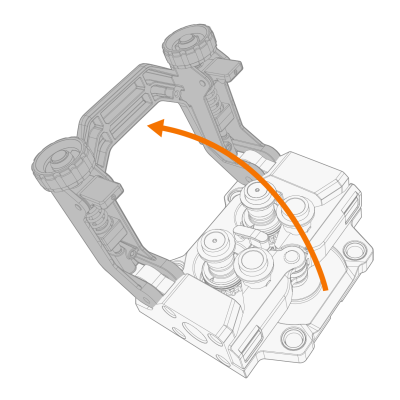

Open the top cover and lift the pressure handle. |
|
2.
|

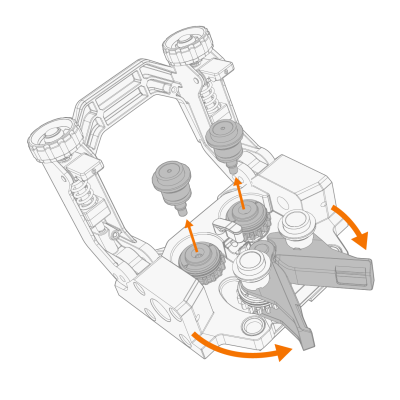

Push the collars on the mounting pins of the feed rolls up to pull the mounting pins off. |
|
The mounting pins are different: The drive rolls' mounting pins have a circular mark on the top, while the pressure rolls' mounting pins have no marks. The pressure rolls' mounting pins have central axles attached to them, so the drive and pressure rolls' mounting pins cannot be confused with each other. |
|
3.
|
Remove the feed rolls. |
|
4.
|
Select the feed rolls according to the tables below. |
| Fe, Ss (Al, Mc, Fc) |
V-groove
 |
0.6 |
|
W001045 |
W001046 |
| 0.8−0.9 |
|
W001047 |
W001048 |
| 1.0 |
|
W000675 |
W000676 |
| 1.2 |
|
W000960 |
W000961 |
| 1.4 |
|
W001049 |
W001050 |
| 1.6 |
|
W001051 |
W001052 |
| 2.0 |
|
W001053 |
W001054 |
| 2.4 |
|
W001055 |
W001056 |
| Fc, Mc (Fe) |
V-groove, knurled
 |
1.0 |
|
W001057 |
W001058 |
| 1.2 |
|
W001059 |
W001060 |
| 1.4−1.6 |
|
W001061 |
W001062 |
| 2.0 |
|
W001063 |
W001064 |
| 2.4 |
|
W001065 |
W001066 |
| Al (Fc, Mc, Ss, Fe) |
U-groove
 |
1.0 |
|
W001067 |
W001068 |
| 1.2 |
|
W001069 |
W001070 |
| 1.6 |
|
W001071 |
W001072 |
| Fe, Ss (Al, Mc, Fc) |
V-groove
|
0.8−0.9 |
See the text on the roll |
W006074 |
W006075 |
| 1.0 |
W006076 |
W006077 |
| 1.2 |
W004754 |
W004753 |
| 1.4 |
W006078 |
W006079 |
| Fc, Mc (Fe) |
V-groove, knurled
|
1.0 |
W006080 |
W006081 |
| 1.2 |
W006082 |
W006083 |
| 1.4−1.6 |
W006084 |
W006085 |
| 2.0 |
W006086 |
W006087 |
| Al (Fc, Mc, Ss, Fe) |
U-groove
|
1.0 |
W006088 |
W006089 |
| 1.2 |
W006090 |
W006091 |
| 1.6 |
W006092 |
W006093 |
|
5.
|

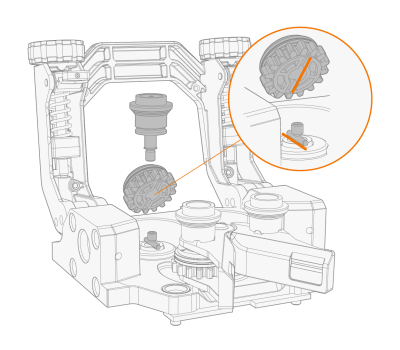

Place the feed rolls back to their places. Align the cut on a drive roll's bottom with the pin on the drive shaft. |
|
6.
|
Reattach the mounting pins to lock the drive and pressure rolls to their places. Align one of the cuts on the bottom of the pressure rolls' mounting pin with the stud on the mount. |
|
7.
|
Lower the pressure handle on the feed rolls and close the top cover. |
