Optional accessories

X8 MIG Welder has several accessories to facilitate its use and improve welding quality.

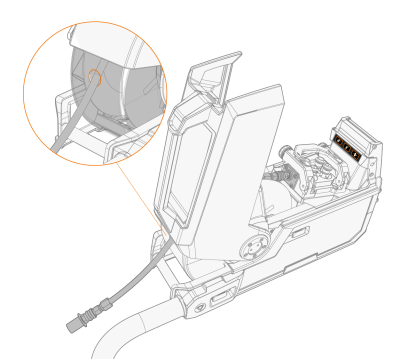

Wire Drum Kit

To use the wire drum kit, drill a hole at the back of X8 Wire Feeder's transparent cover.

Wire Feeder Hanger for Boom

The wire feeder hanger for boom facilitates welding where it is difficult to bring the full X8 MIG Welder welding system. The hanger allows more fluent transitions in constricted spaces.

Do not hang the wire feeder from the handle. Use the wire feeder hanger for boom instead.

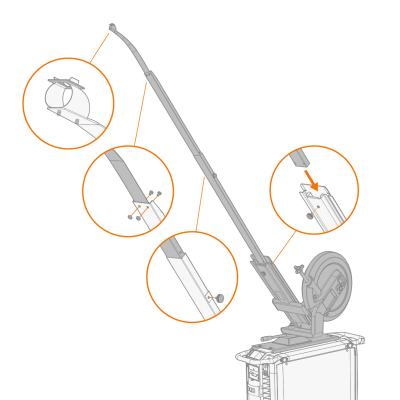

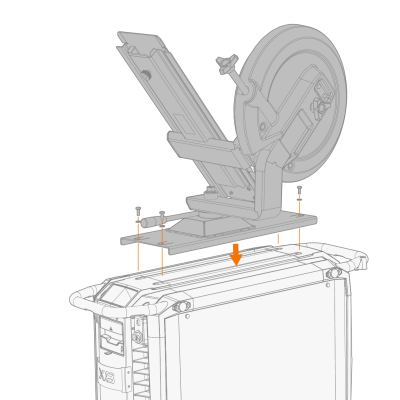

Wire Feeder Counterbalance Arm

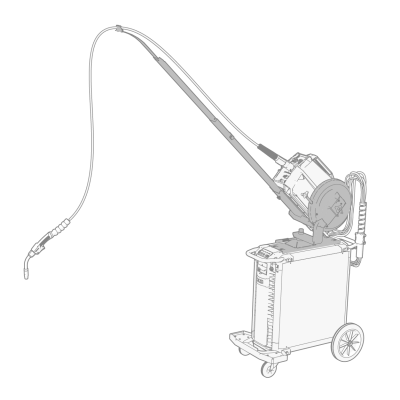

The wire feeder counterbalance arm reduces the weight of the cable bundle over the working area.

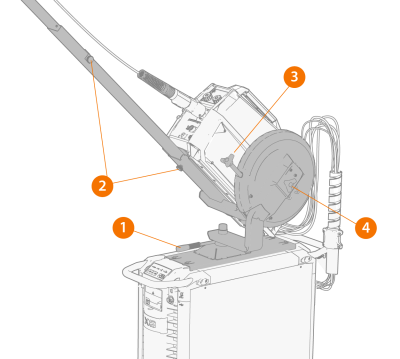

Proceed as follows:

1.

Lock the rotating plate to its position.

2.

Adjust the length of the arm. Tighten the screws to lock to position.

3.

Turn to adjust the tension of the counterbalance spring.

4.

Turn to adjust the damping of the up and down movement.

Wire Feeder Cabinet Heater

The wire feeder cabinet heater prevents moisture from condensing inside the wire feeder cabinet so that the wire spool stays dry.

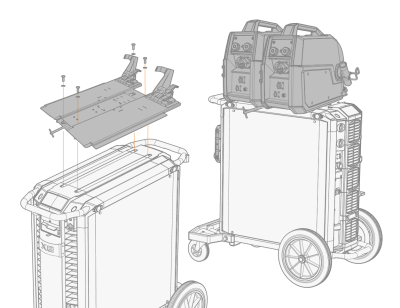

Double Wire Feeder Rotating Plate

The double wire feeder rotating plate allows the use of two wire feeders on one power source.

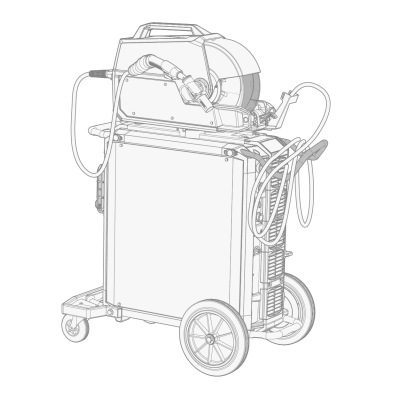

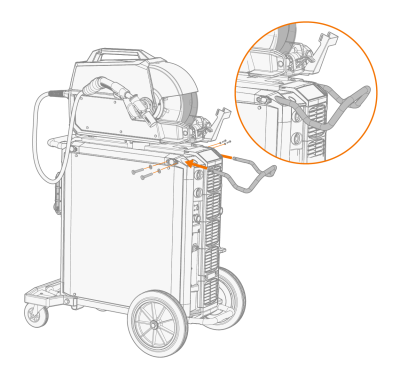

X8 Cable Rack

The cable rack holds the interconnection cable during transportation or storage.

This is an alternative accessory for the gas cylinder cart. Both cannot be installed at the same time.

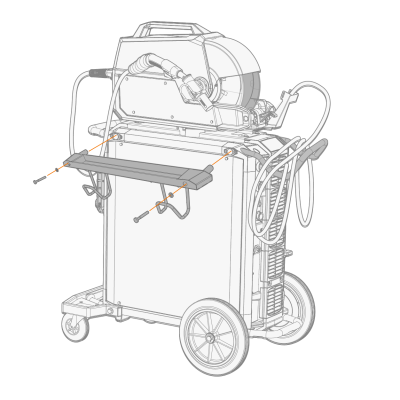

X8 Accessory Tray

The accessory rack holds the small parts and tools needed for welding. Install it on the side of the welding machine.
