Cabling diagram

Connect the interconnection cables to power source and wire feeder. The figure below shows the cables with colors to facilitate the identification.

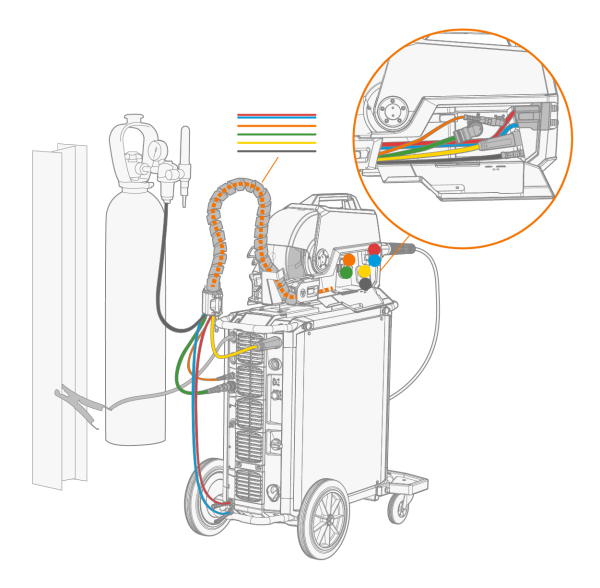

Figure: Interconnection cabling for power source and wire feeder:

Color codes:

	Welding current cable
	Shielding gas hose
	Control cable
	Measurement cable
	Coolant input and output hoses
	Earth return cable
