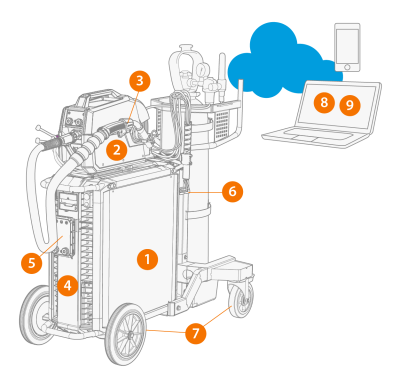

System introduction
X8 MIG Welder is a multi-process welding equipment intended for demanding professional use in general or heavy fabrication. The welding system is suitable for various MIG/MAG processes (MIG, 1-MIG, Pulse, DPulse, WiseRoot+, WiseThin+ ) as well as MMA welding and gouging, cladding and brazing.
|
1.
|
X8 Power Source 400/500/600 |
- Includes all the software, welding programs and memory channels for the welding system
- Connects to one or two X8 Wire Feeders
- Operates with several wire spool types (some of which require an adapter)
- Connects to an external wire drum
- Contains a control panel for basic adjustment of welding parameters, memory channels and settings
|
3.
|
Flexlite GX MIG welding gun, K8 level models (for information, refer to userdoc.kemppi.com) |
- Connect to the wire feeder with Kemppi Gun Adapter
- Gas-cooled models feature a rotating, changeable neck
- Remote control for selecting memory channels and adjusting settings (optional)
- Ergonomic pistol grip handle
- Optionally included in the power source delivery
- Can also be purchased separately
- Essential for welding with a current over 400 A
- Wireless remote interface for operating X8 MIG Welder
|
6.
|
Interconnection Cable 70/95-w/-g (several options) |
- Bundle of cables connecting the wire feeder to the power source
- Transfers the welding current, control signals, shielding gas and coolant from the power source to the wire feeder
|
7.
|
X8 Wheel Set (several options) |
- The wheel set is included in the power source delivery
- The gas cylinder cart is optionally included in the power source delivery
- Cloud-based service for viewing and managing various information about your X8 MIG Welder
- Provides manufacturer's validation certificate
- Cloud-based service for creating and managing digital WPS documents and other welding-related information
In addition:
- Several accessories (optional)
- Several welding software products (optional)
Introduction to WeldEye
