Lifting equipment

If you need to lift X5 FastMig equipment, pay special attention to the safety measures. Also follow the local regulations. The X5 FastMig equipment can be lifted with a mechanical hoist as a whole only when the equipment is installed securely on a dedicated transport unit.

	DO NOT attempt to lift the equipment with a hoist from the handle.

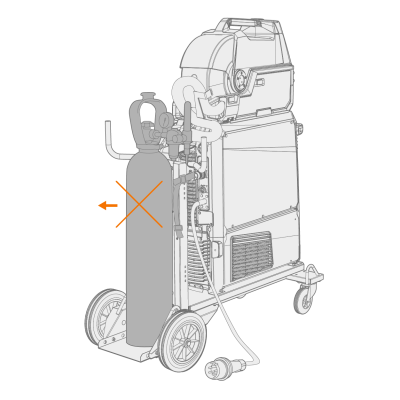

	If a gas bottle is installed on cart, DO NOT attempt to lift the cart with the gas bottle in place.

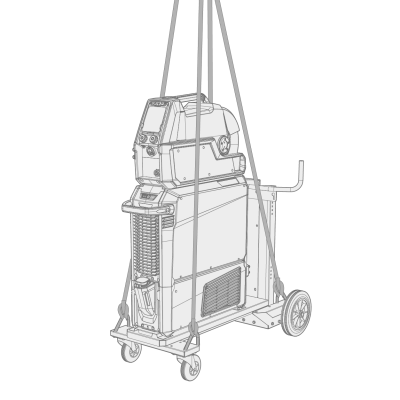

4 wheel cart:

1.

Ensure that the welding equipment is properly secured to the cart.

2.

Connect the 4-legged chain or straps from the hoist hook to the four lifting points on the cart on both sides of the welding equipment.

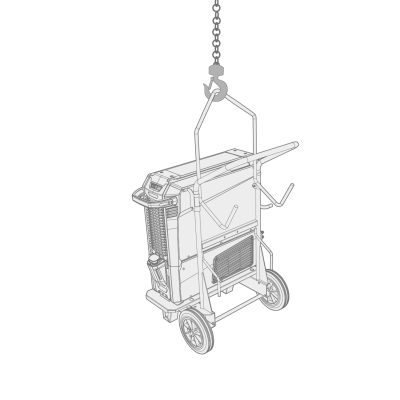

2 wheel cart:

1.

Ensure that the welding equipment is properly secured to the cart.

2.

Connect the hoist hook to the lifting handle on the cart.
