Installing cooling unit (optional)

The X5 cooling unit must be installed by authorized service personnel.

Tools needed:

1.

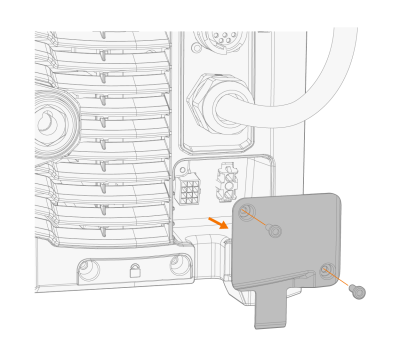

Remove the small connector cover in the rear of the power source.

2.

Route the cooling unit's connection cables so that they remain accessible through the next steps.

3.

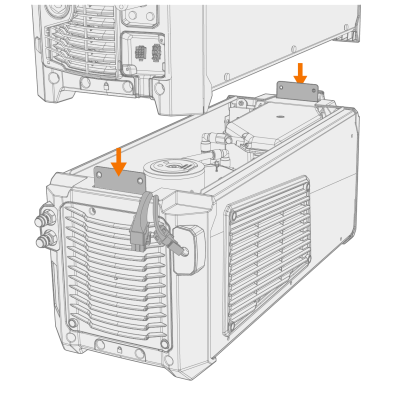

Lift the power source on top of the cooling unit so that the fixing plates align and go into their slots.

Ensure that the cooling unit's connection cables are not caught and/or damaged between the edges.

4.

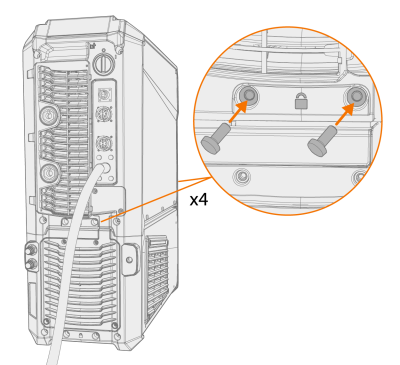

Fix the units together with two screws (M5x12) in the front and two screws (M5x12) in the rear.

5.

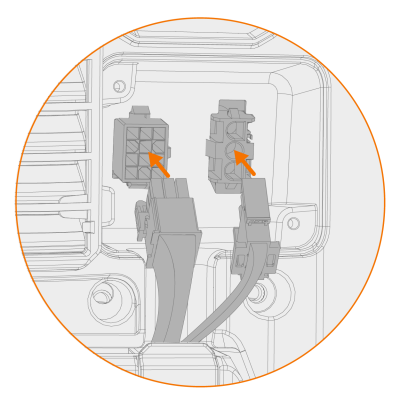

Connect the cooling unit cables.

Do not use force, but make sure the connectors are properly connected.

6.

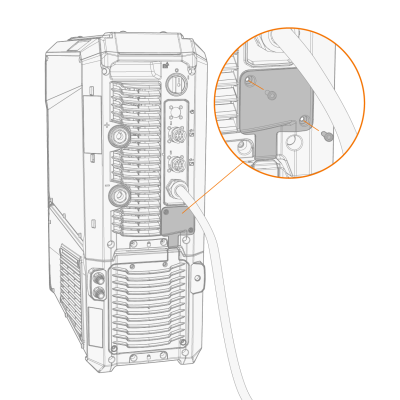

Replace the small connector cover.
