Wire spools and hubs (300)

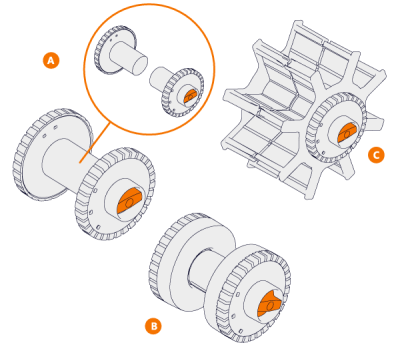

X5 Wire Feeder 300 has three different wire spool hub options available for different wire spools:

•

Standard spool (A)

•

Spool hub for the small wire spool (B)

>>  Attach the extension pieces to the standard spool halves.

•

Spool hub for the wire spool with a large center hole (C) (e.g. a wire basket rim)

All parts are delivered with the wire feeder.

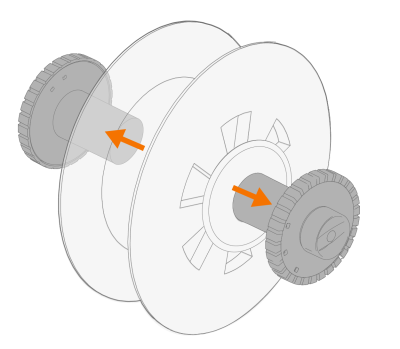

Loosen and pull the spool hub halves apart to detach them.
