Control panel of X5 WF 200 Manual

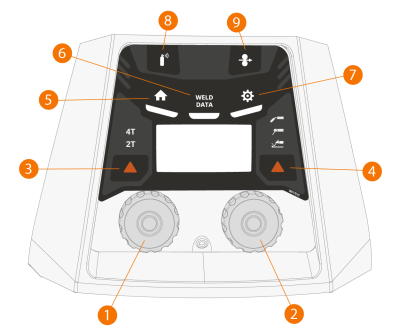

This section describes the controls and features of the X5 Wire Feeder 200 Manual control panel (X5 FP 200R).
| 1. | Left control knob |
| 2. | Right control knob |
| 3. | Trigger logic selection (2T/4T) |
| 4. | Process selection (MIG/MMA/Gouging/TIG) |
| 5. | Home button (default welding mode) |
| 6. | Weld data button |
| 7. | Settings button |
| 8. | Gas test button |
| 9. | Wire inch button |
For using the control panel, refer to Using X5 Manual control panel.
