X5 cooling unit (optional)

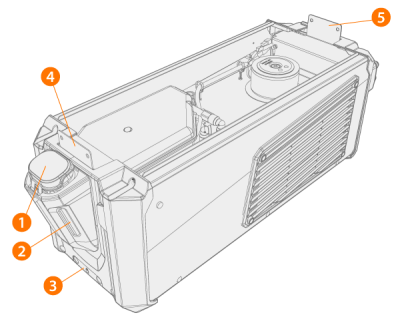

Front:
|
2.
|
Cooling liquid level indicator |
|
3.
|
Front locking interface (for locking on the cart) |
|
4.
|
Front locking interface (for locking to the power source) |
|
5.
|
Rear locking interace (for locking to the power source) |
|

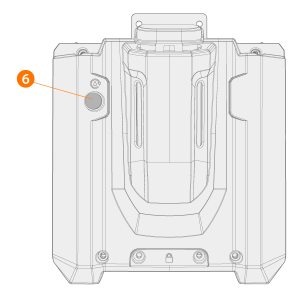

6.
|
Cooling liquid circulation button |
>> Keeping the button pressed activates the pump and circulates the cooling liquid throughout the system. Once released, the pump stops.

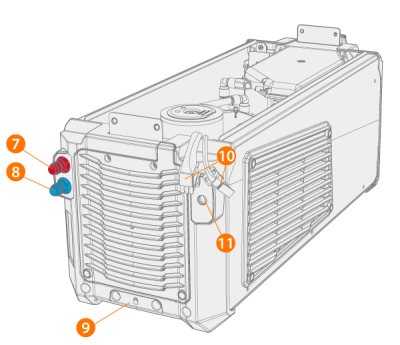

Rear:
|
7.
|
Coolant inlet/outlet connector (color-coded) |
|
8.
|
Coolant inlet/outlet connector (color-coded) |
|
9.
|
Rear locking interface (for locking on the cart) |
|
10.
|
Cooling unit to power source connectors |
|
11.
|
Additional strain relief mount. |
